EBYTE

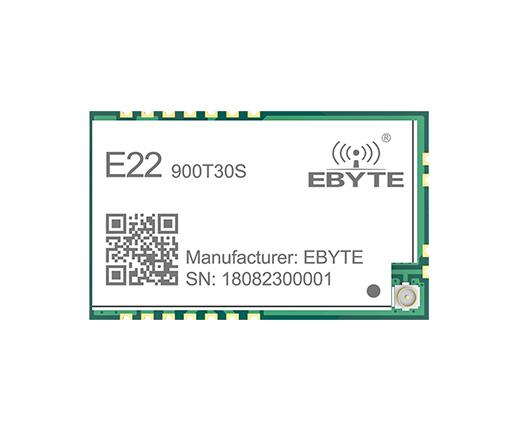

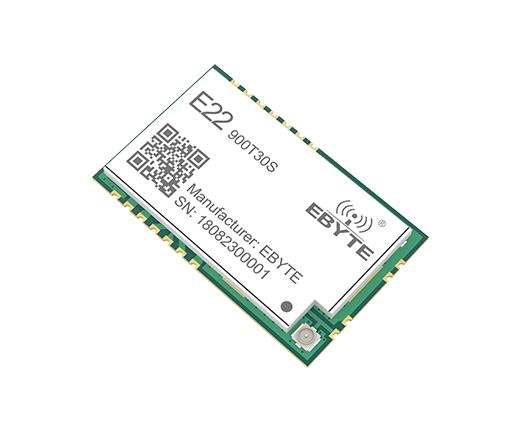

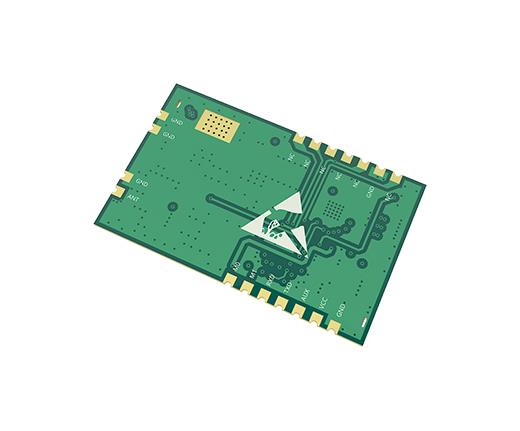

LoRa, 868MHz 1W SMD long range, 5V Supply,RF Transmission 30 dBm, 10 k

Product Code : E22-900T30S
Comments
767.00 TL + VAT
Stock Status:
In (27 Piece)
Buy wholesale for more discount!
Quantity
Discount
5 - 10
%5
11 - 25
%10

Note
:
Same Day Cargo Same day cargo until 12.30 o'clock
Worldwide Shipment
Next Day Shipment
Campaign

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Return and Delivery
  • Payment Options
  • Comments (0)
  • Call Me
  • How Will We Ship To You
  • Ek
  • RF Parameter Value Remark
    Working frequency 850.125~930.125 MHz Support ISM band
    Transmitting power 30 dBm Max. Power (1W)
    Receiving sensitivity -148 dBm Air data rate is 2.4kbps
    Air data rate 0.3k~62.5kbps Controlled via user's programming
    Test distance 10000m Test condition：clear and open area, antenna gain: 5dBi，antenna
    height: 2.5m，air data rate: 2.4kbps
    Hardware Parameter Value Remark
    Size 40.5 * 25 mm
    Antenna type IPEX / Stamp hole
    Communication interface UART
    Package SMD
    Electronic parameter Min. Typ. Max. Unit Condition
    Power supply 3.3 5 5.5 V ≥5.0 V ensures output power
    Communication level - 3.3 - V For 5V TTL, it may be at risk of burning down
    Transmitting current - 133 - mA Instant power consumption
    Receiving current - 11 - mA
    Sleep current - 469 - μA Software is shut down
    Operating temperature -40 20 85 ℃
    Operating humidity 10 60 90 %
    Storage temperature -40 20 125 ℃
    Features
    FREKANS
    :
    868 MHz
