PRODUCT DETAILS
Description

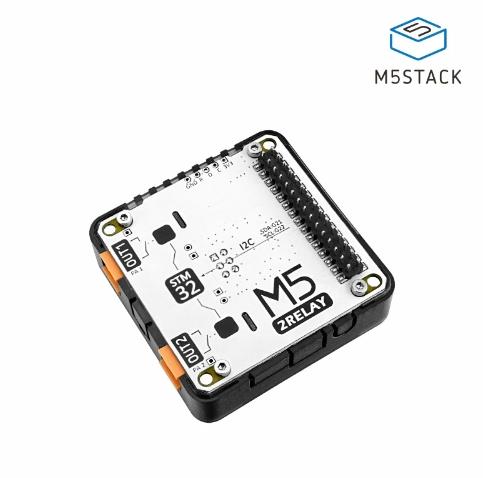

2-Relay 13.2 Module is a 2-Channel AC Relay module, supports 250V/5A per channel. This module conforms to 13.2mm thickness, with onboard STM32F030 for I2C communication.
Features
- STM32F030F4
- I2C communication (address: 0x26)
- 2-Relay
- Power input (supports AC/DC input)
- Programming platform：Arduino/UIFLOW
Includes

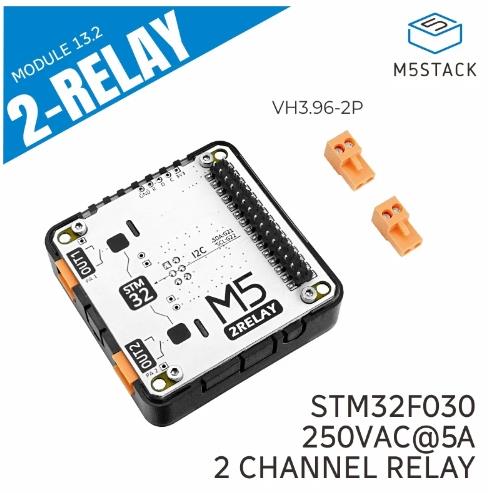

- 1×2-RELAY MODULE
- 2x VH3.96-2P Header
Applications
- On/Off control
- Solenoid valve control
- DC control load on/off
- Remote IoT Switch
Specification
Resources Parameters MCU STM32F030F4P6 Actuator 2 RELAY Electrical Characteristics AC/DC Contact material AgSnO2 CH Maximum power 250VAC @ 5A Contact resistance ≤100mΩ Product Size 54mm × 54mm × 20.2mm（外壳高13.2mm） Package Size 95mm × 65mm × 25mm Product Weight 33.4g Package Weight 35.6g LEARN AND DOCUMENTS
