1.820,36 TL + KDV
Stok Durumu:
Var
(5 Adet)
Toptan alın indirim fırsatlarını yakalayın!
Miktar
İndirim
2 - 5
%2
6 - 9
%5
Not
:
Notunuzu buraya giriniz.
Aynı Gün Kargo
12.30’a kadar aynı gün kargo
Worldwide
Shipment
Next Day
Shipment
- Ürün Özellikleri
- İade ve Teslimat
- Ödeme Seçenekleri
- Yorumlar (0)
- Beni Ara
- Ek
-
[Carrier frequency]：862~930MHz
[Transmit power]：1W
[Communication distance]：8km
[Product size]：82*62*25mm
[Interface type]：RS232/RS485
[Net weight of product]：128±5g

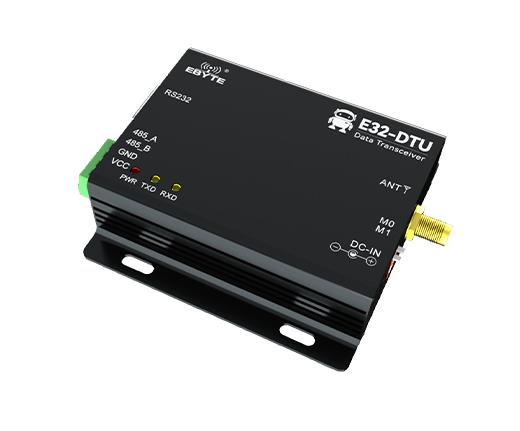

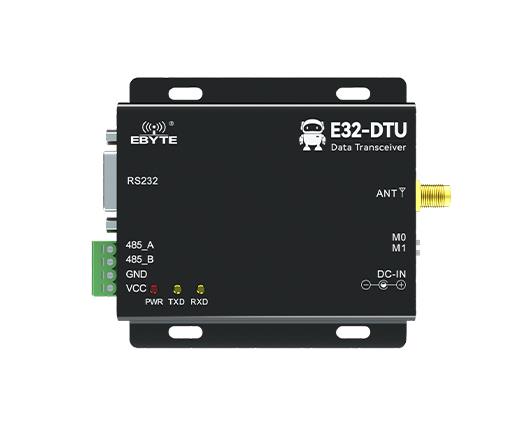

[Introduction]：E32-DTU (900L30)-V8 is a high-speed 868M wireless digital radio (with RS232/RS485 interface), LoRa spread spectrum technology, transparent transmission, working in the 862~930 MHz frequency band (default 868MHz), working voltage Range 8V~28V.
RF parameters parameter value Remark Working frequency band 862~893MHz Factory default 868MHz Transmit power 30 dBm Maximum power about 1W Receive Sensitivity -147dBm Airspeed 2.4kbps Air rate 0.3k~19.2kbps Factory default 2.4kbps Measured distance 8 km clear and open environment, maximum power, antenna gain 5dBi, height 2m, airspeed 2.4kbps Hardware parameters parameter value Remark Dimensions 82*62*25mm Antenna form SMA-K Communication interface RS232/RS485 Baud rate supports 1200~115200, the factory default is 9600 Interface DB-9/Crimping Standard DB9 Socket/3.81 Terminal Buffer capacity 512 bytes 58 bytes of internal automatic packet transmission
