Mini PCIe Wireless Module Adapter Card for Raspberry Pi (LTE BASE HAT)

Ürün Kodu : LTE-PCIe-RP
Yorumlar
1.241,97 TL + KDV
Stok Durumu:
Yok
Teklif İsteyiniz Stoklara düşünce haber ver
Not
:
Aynı Gün Kargo 15’e kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek

  • Mini PCIe MPCIe 4G LTE GSM GPRS GNSS EDGE UMTS HAT Wireless Mdoule Adapter Card for Raspberry Pi 4 3 2 B+ A+ Zero





    Mini PCIe MPCIe 4G LTE GNSS EDGE UMTS HAT Wireless Mdoule Adapter Card for Raspberry Pi 4 3 2 B+ A+ Zero





    Product Description

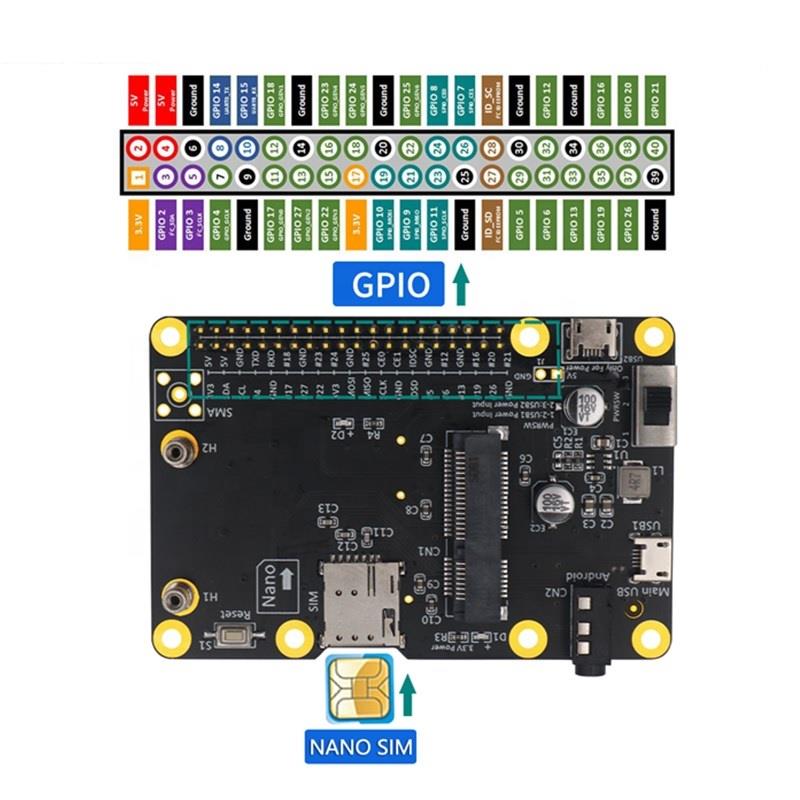

    1. Fully compatible with Raspberry Pi models that have the 40-pin GPIO header (4, 3, 2, B+, A+, Zero)



    2. Compatible the following brand Mini PCIe Modules Quectel: EC25/ EC21/ EC20 /UC20/ LTE-EP06 Sierra : AirPrime MC Series Telit: LM960, LE910V2, HE910, LE910Cx Huawei: ME909s-120, ME909s-821, and more Simcom: SIM7100, SIM7230, and more ZTE: ZM8620, and more U-Blox :MPCI-L2 Series Thales: PLS62W, mPLS8, mPLAS9

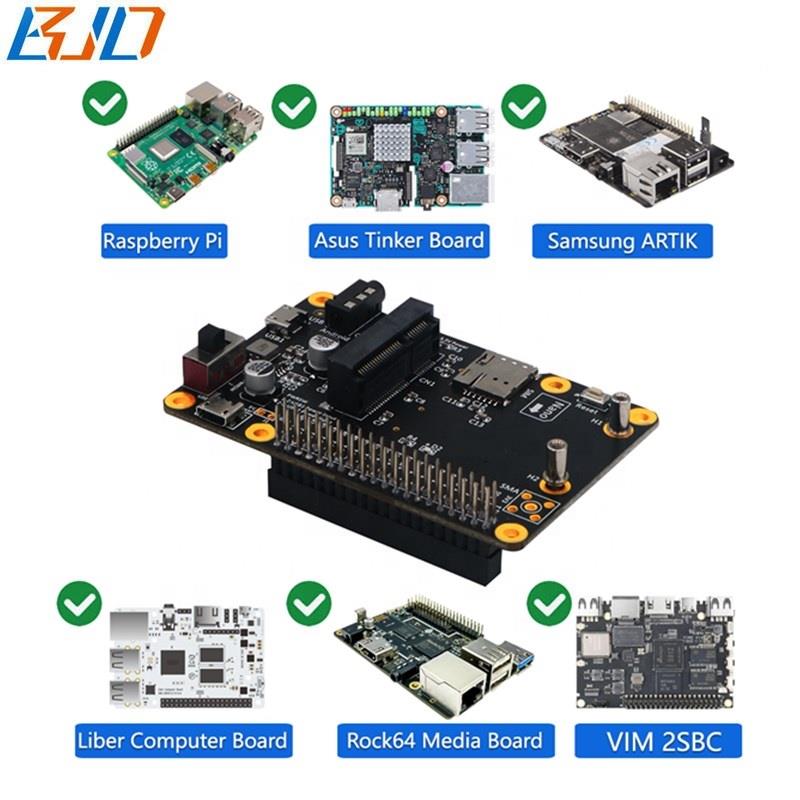

    3. Compatible the following brand Boards Raspberry Pi 4, 3, 2, B+, A+, Zero Asus Tinker Board Rock 64 Orange Pi Samsung ARTIK’s Eagleye board Latte Panda



    4. Clip-in Mini PCIe socket compatible with worldwide LTE, UMTS/HSPA+ and GSM/GPRS/GNSS/EDGE coverage with regional or global modules which work with different frequencies & carriers



    5. NANO SIM Card socket can easily reachable on the upside of the HAT.



    6. Can be used standalone with PC/Laptop over micro USB, without stacking with Raspberry Pi.



    7. Efficient and low quiescent current power circuit can hold up to 3Amps



    8. Working temperature range: -40°C ~ 80°C



    Note 1: The Base HAT doesn’t need or has a driver. But the host computer (such as RPi, Asus Tinker Board) needs the driver of the compatible module that will be used with the Base HAT. For example, if you are using Quectel’s EC25 with the Base HAT, then your host device should have the driver for Quectel EC25. Nowadays, most of the Linux kernel comes with the required drivers installed as a result the modules are recognized.



    Note 2: These compatibility list created by assuming you’ve connected the Base HAT to the device via USB. UART communication can be work with every device in the list easily which have 3.3V level UART port.



    Note 3: We don’t recommend the usage of long and low-quality micro USB cables between Base Shield and Raspberry Pi. It causes data and power loss. Thus the cable included the package works greatly.

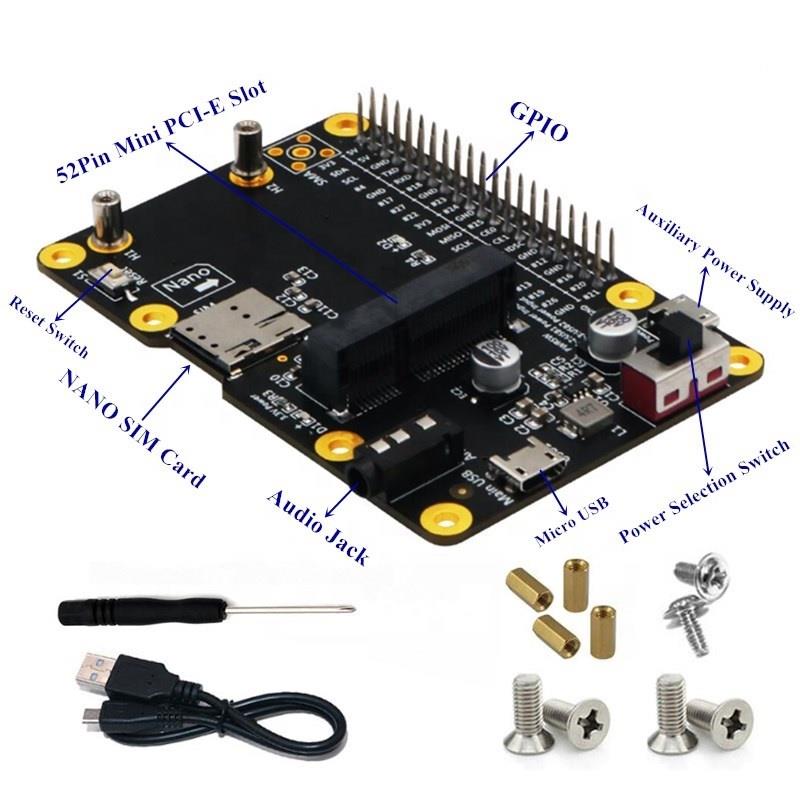

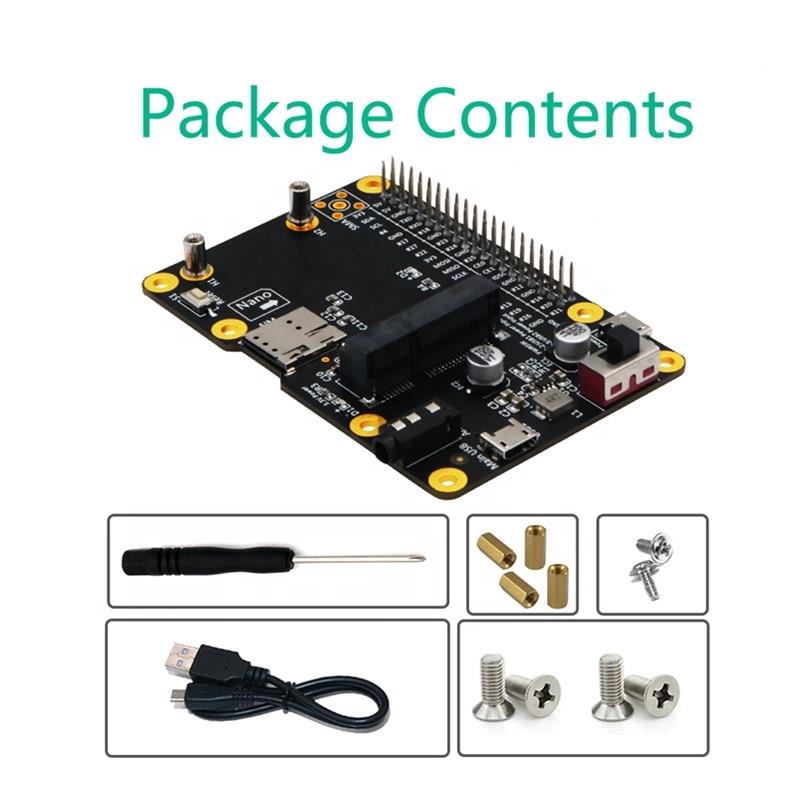

    Package Content:

    1 x 3G/4G/LTE Base HAT

    1 x USB 2.0 to Micro USB Cable

    1 x Screw Driver

    8 x copper nut

    8 x M2.5 screw
