PRODUCT DETAILS
Description

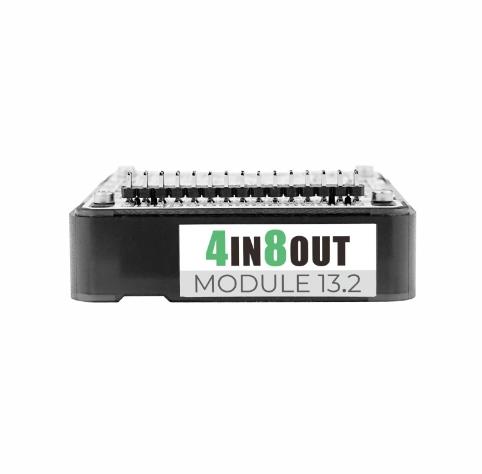

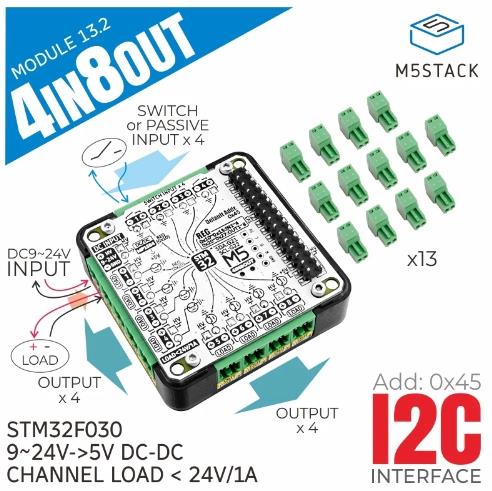

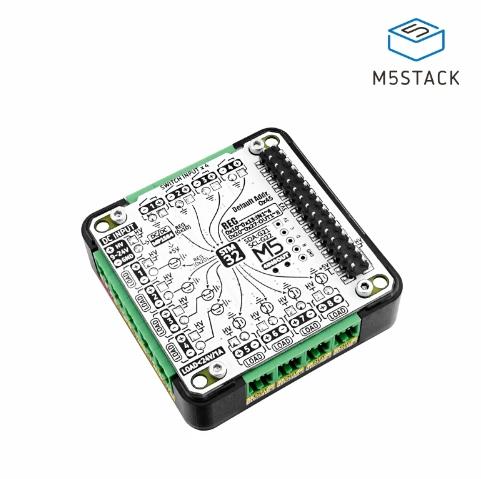

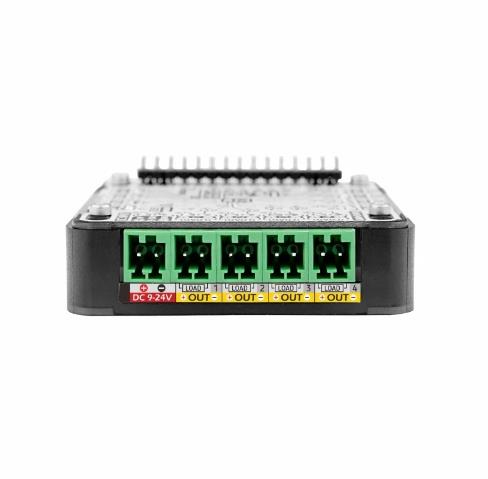

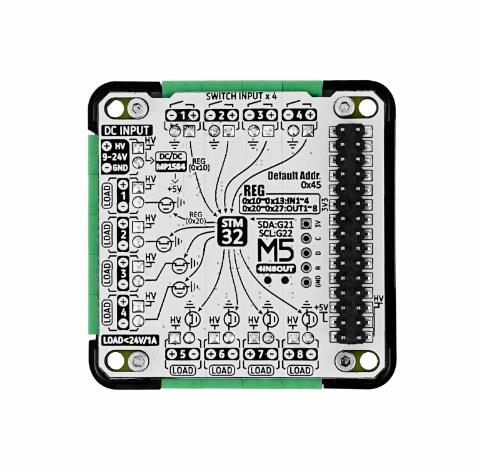

MODULE 13.2 4IN8OUT is a '4-Channel Passive Input/Switch + 8-Channel MOS Drive Output' drive module. Adopt STM32F030 as the I2C IO chip, support 9-24V DC input, with internal DC-DC circuitry to 5V.
Product Features
- Compatible with Basic/Fire/Core2
- Adopt STM32F030 as the IO chip, I2C communication, I2C address is changeable by modifying the register

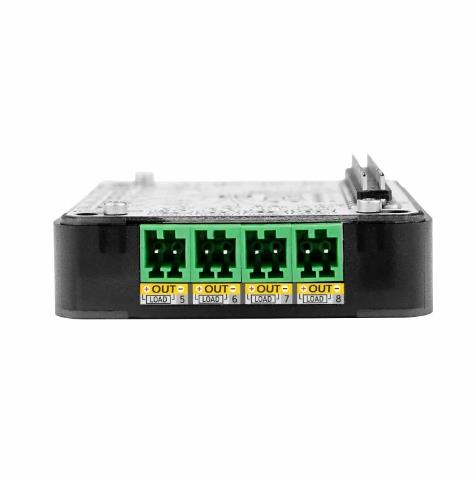

- 8-channel MOS Drive circuitry share the same VCC, channle load <1A

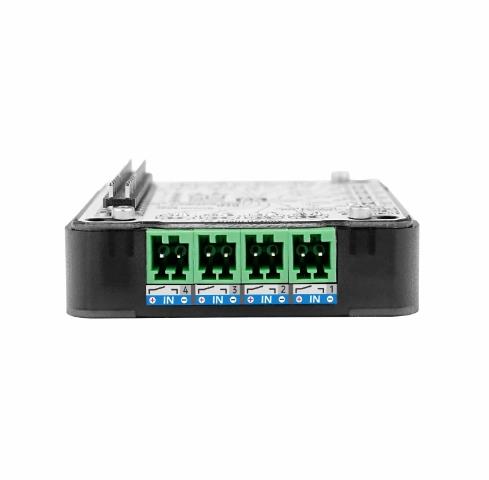

- 4-channel Passive Input share the same GND, no active signal or >5V signal allowed
- With internal MP1584, 9~24V -> 5V DC-DC converter
Include
- 1x MODULE 13.2 4IN8OUT
- 13x 2P Terminal
Application
- Multi-channel load drive (Relay, Valva, Single-phase Motor, Singal LED)
- Limit Switch or Button test
Specification
Spec Parameter Input Voltage 9~24V Output Channel 8 Input Channel 4 Output Load <1A each Channel Communication Interface I2C I2C Address Default 0x45, changeable by modifying the register 0xF0 Net Weight 21.9g Gross Weight 52.5g Product Size 54*54*13mm Package Size 125*68*23mm LEARN AND DOCUMENTS
