DFRobot

Beetle ESP32 Microcontroller

Ürün Kodu : LTE-DFR0575
Yorumlar
874,02 TL + KDV
Stok Durumu:
Var (2 Adet)
Not
:
Aynı Gün Kargo 12.30’a kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek
  • This product is not compatible with ARDUINO UNO!

    You may also check Bluetooth microcontrollor selection guide to get more information.

    This microcontroller enables users to directly burn programs via the on-board USB interface. Meanwhile, Bluetooth and WIFI are integrated in the microcontroller for supporting more applications. With this Beetle-ESP32, you can easily build up your dreaming project.

    Features

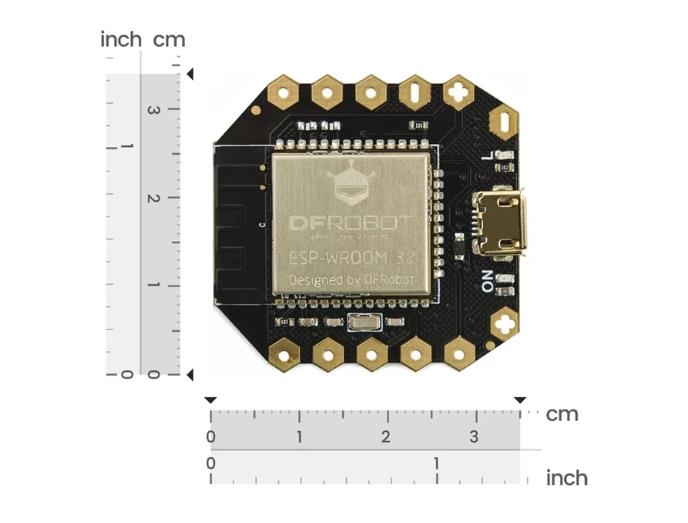

    • A small size of 35mm×34mm
    • Enable users to directly download and debug programs through Micro USB, free from programmer.
    • Large-scale I/O ports with gold plating, easy to screw wire on it or to sew the board on the clothes with wires, no need to solder.
    • A group of gold plating power interfaces of honeycomb type, convenient to use.
    • Integrate WIFI and Bluetooth

    Specification

    • USB Supply Voltage: 5.0V
    • VIN Supply Voltage: DC 3.5-6.5V
    • Processor: Tensilica LX6 dual-core processor (One for high speed connection; one for independent programing)
    • Frequency: 240MHz
    • SRAM: 520KB
    • Flash: 16Mbit
    • Wi-Fi Standard: FCC/CE/TELEC/KCC
    • Wi-Fi Protocol: 802.11 b/g/n/d/e/i/k/r(802.11n, high speed can reach to 150 Mbps),  converge A-MPDU and A-MSDU, supporting 0.4us protecting interval.
    • Frequency Range: 2.4~2.5GHz
    • Bluetooth Protocol: comply with BR/EDR/BLE standard of Bluetooth v4.2.
    • On-chip Clock: 40MHz crystal and 32.768 KHz crystal
    • Digital Interface: D2, D3, D4, D7
    • Analog Interface: A0, A1, A2, A3
    • I2C: 1
    • Serial Port: 1
    • Dimension: 35×34mm/1.38×1.34"

    Documents

  • Product wiki

Shipping List

  • Beetle ESP32 Microcontroller               x1
