Break Out Board inc LE910-EU V2 Module

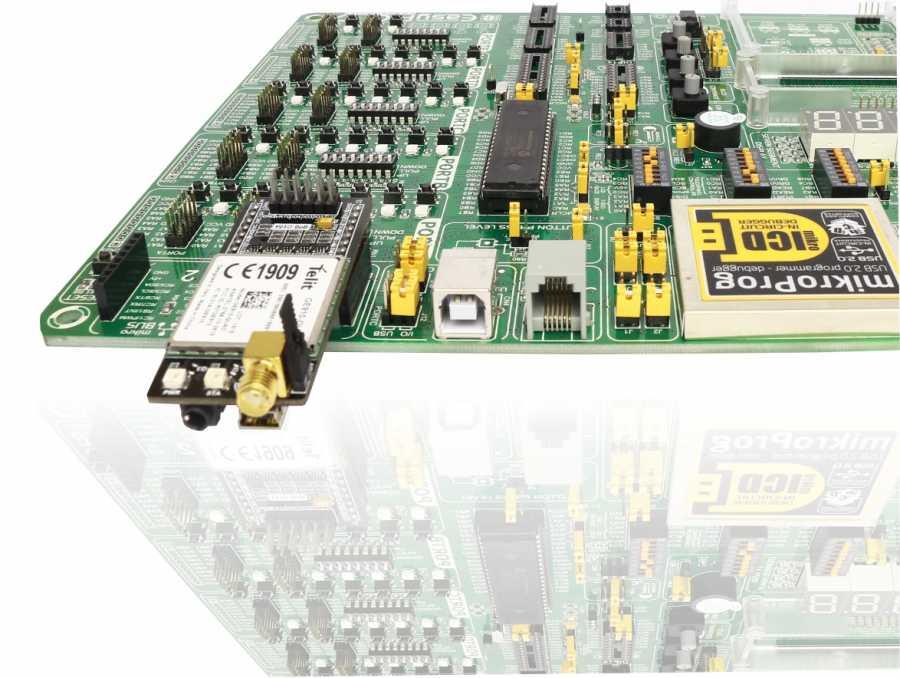

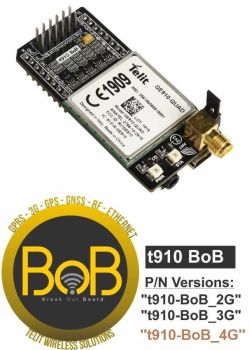

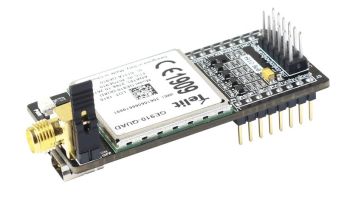

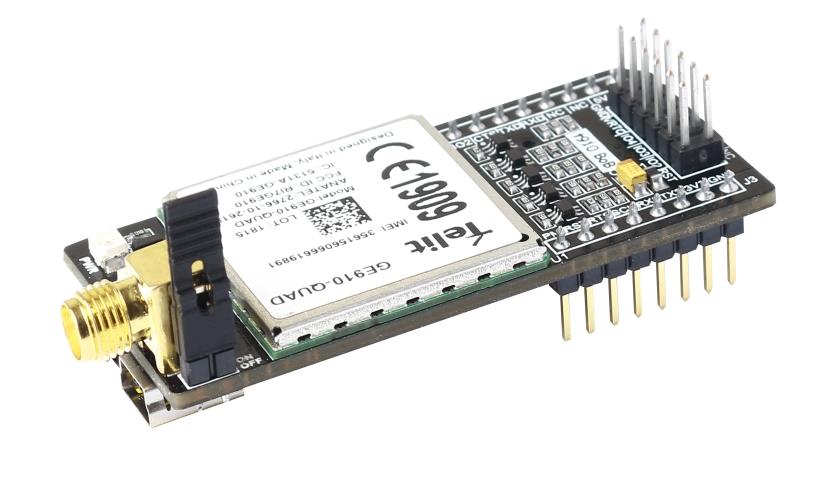

"t910 BoB " is a formative with a microBUS structure. It is an effective and easy solution for adding GSM/GPRS/3G/4G solutions into your design. It features the Telit GE910-QUAD or UE910-EUR or LE910-EU V2 module, a SMA connector for an antenna, a SIM CARD socket. t910 BoB communicates with the target board microcontroller via microBUS   ( Rx, Tx, Rx2, Tx2, RTS, CTS, Reset, GPIOs ).  The Audio Connector is compatible with Iphone, Samsung, HTC headsets. It has two LED  diodes  for  power indicator and status.

Features:

·         Band:

         900 / 1800 /1900  MHz @ BoB_2G

         850 / 900 / 1800 / 1900 /2100 MHz @ BoB_3G

         800 / 900 / 1800 / 2100 MHz / 2600  @ BoB_4G

·         Control via AT commands according to 3GPP TS 27.005, 27.007 and Telit Custom AT commands

·         Interfaces: SIM, 2 UART, Antenna, Analog & Digital Audio

·         3 GPIO Ports available

·         FOTA (Firmware Over the Air)

·         Header Form Factor

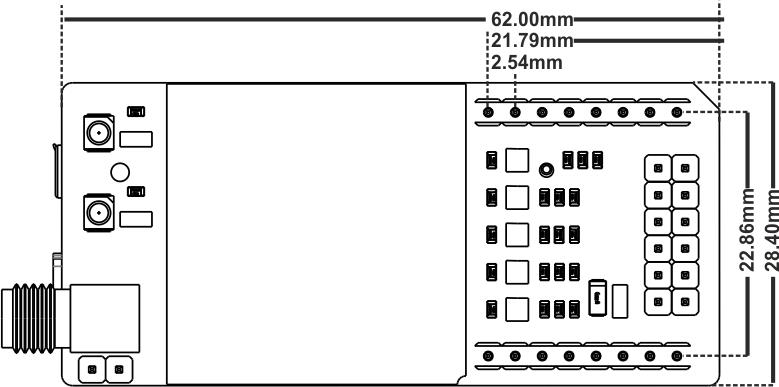

·         PCB Dimension: 62.00  x  28.4 mm

·         Power (Green) - Status(Red) LEDs

Applications:

·         Telemetry

·         M2M ( Machine to Machine ) Systems

·         Wireless Sensor Networks

·         Home and Building Automation

·         Wireless Alarm and Security Systems

·         Industrial Monitoring and Control

·         Irrigation Systems

·         Temperature and Humidity Tracking Systems.
