Introduction

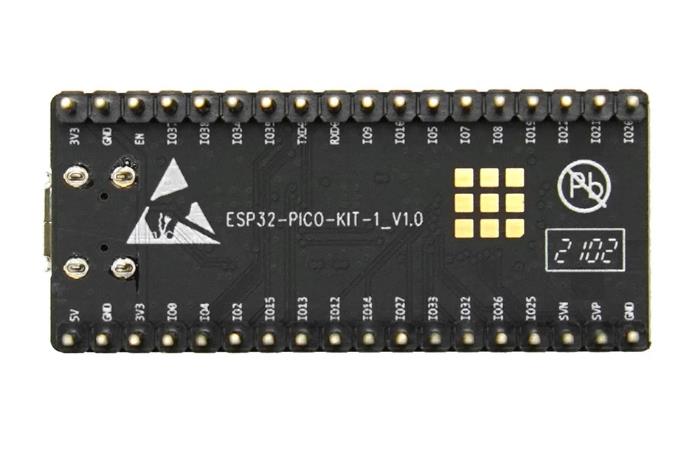

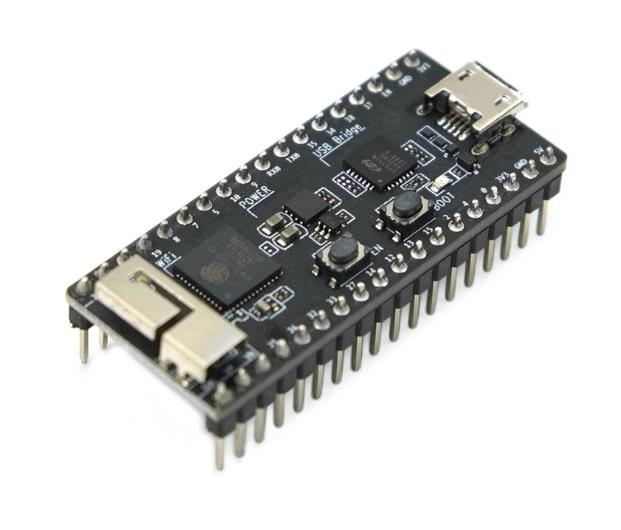

The ESP32-PICO-KIT-1 development board is equipped with the ESP32-PICO-V3 module. ESP32-PICO-V3 has complete Wi-Fi and Bluetooth functions. ESP32-PICO-KIT-1 provides users with hardware based on ESP32 chip application development, making it easier for users to explore the functions of the ESP32 chip.
The ESP32-PICO-KIT-1 development board also integrates a USB-to-UART bridge circuit, allowing developers to burn and debug firmware directly through the USB port of a PC.
In order to facilitate hardware connection, all IO signals and system power pins on ESP32-PICO-V3 are led to pads on both sides of the development board (18 x 0.1"). The above 18 pads are also led to pin headers and can be used Dupont wire connections.
Specification
Wi-Fi
- Protocols: 802.11 b/g/n (802.11n up to 150 Mbps)
A-MPDU and A-MSDU aggregation and 0.4 µs guard interval support- Frequency: 2.4 ~ 2.5 GHz
Bluetooth
- Protocols: Bluetooth V4.2 BR/EDR and BLE specification
- Radio: NZIF receiver with –97 dBm sensitivity
Class-1, class-2 and class-3 transmitter
AFH- Audio: CVSD and SBC
Hardware
- Module Interfaces: ADC, DAC, touch sensor, SD/SDIO/MMC Host Controller, SPI, SDIO/SPI Slave Controller, EMAC, motor PWM, LED PWM, UART, I2C, I2S, infrared remote controller, GPIO, pulse counter
- On-chip sensor: Hall sensor
- Integrated crystal: 40 MHz crystal
- Integrated SPI flash: 4 MB
- Operating voltage/Power supply: 2.7V~3.6V
- Average Operating current: 80 mA
- Minimum current delivered by power supply: 500 mA
- Operating temperature range: –40 °C ~ 85 °C

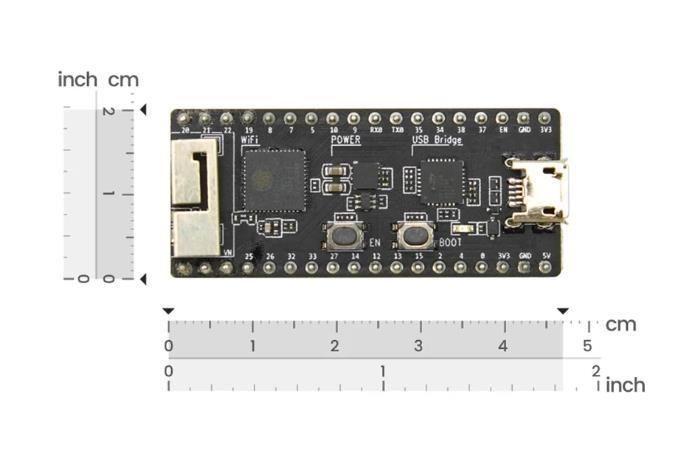

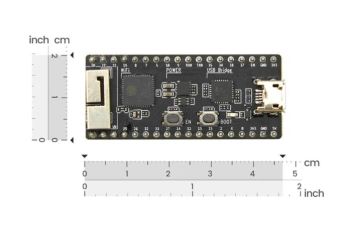

- Package size: 47 x 20.3 x 10 mm/1.85 x 0.80 x 0.39”
Documents
Shipping List
- ESP32-PICO-KIT-1 Development Board x1
- Protocols: 802.11 b/g/n (802.11n up to 150 Mbps)
