The Telit Evaluation Kit EVK-PRO3 provides a ready, future-proof and flexible environment for a quick and easy development of applications with Telit GE863-Pro3, revolutionary GSM/GPRS engine including ARM9 processor core, and in this way dramatically reducing time-to-market.

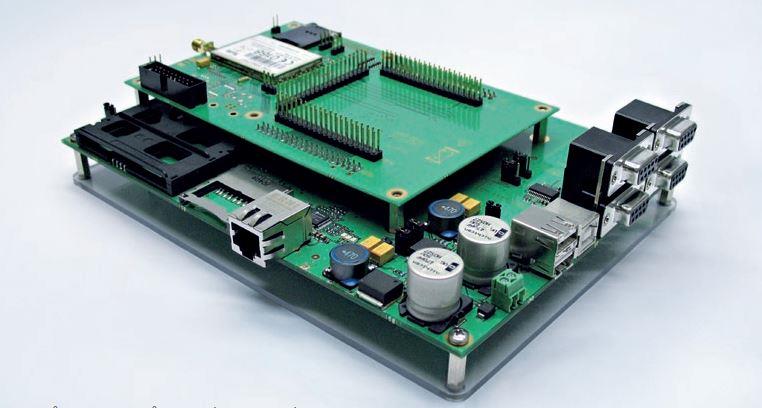

The kit is formed by a motherboard, on top of which an interface (adapter board) with the GE863-PRO3 module is plugged in. This concept allows using a unique motherboard compatible for both GE863-PRO3 with Linux or without OS, and can also be applied for future product variants.
On the motherboard are placed several interfaces, such as 4 x rS232, 2 host USB 2.0 and 1 device USB 2.0, Ethernet, SD/MMC, ISo 7816, as well as reset and oN keys for both GSM/GPRS and ARM part, which represent a reference design for this peripheral circuitry of the module. The ArM core and the GSM/GPrS engine can establish connection on the adapter board and both sides of the communication can be monitored on the RS232 ports.
Adapter boards convert the connection technology of the module (BGA solder) into a PTH pin connector. The part of the basic interfaces is served by the mother-board, whereas specific interfaces according to the type of the module like antenna, General Purpose I/O (GPIO), SIM connector, ARM JTAG etc. are available on the adapter board to connect to the user’s application, extension boards or other development tools or measurement equipment.
