M5STACK

Extension Port Module for Core2

Product Code : LTE-M123
Comments
948.10 TL + VAT
Stock Status:
Off
Out of stock Alert when in stock
Note
:
Same Day Cargo Same day cargo until 12.30 o'clock
Worldwide Shipment
Next Day Shipment
Campaign

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Return and Delivery
  • Payment Options
  • Comments (0)
  • Call Me
  • How Will We Ship To You
  • Ek
  • PRODUCT DETAILS

    Description

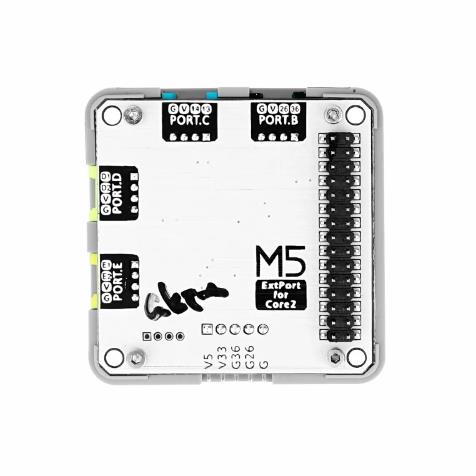

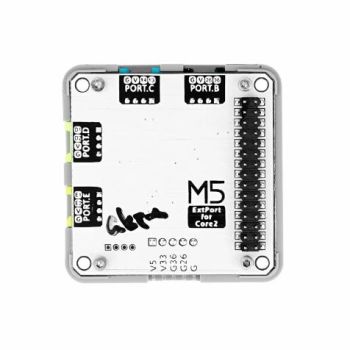

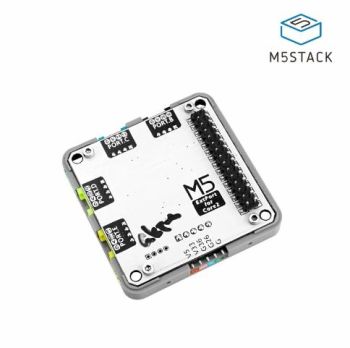

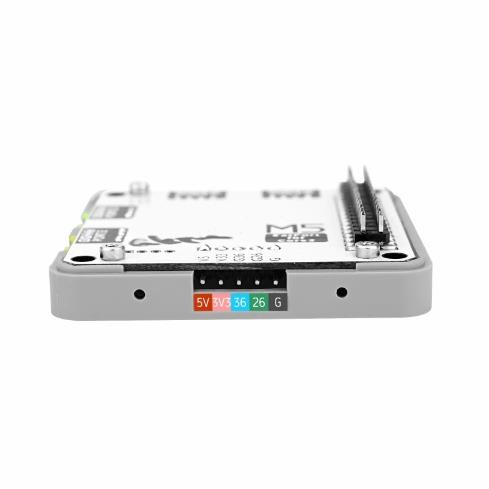

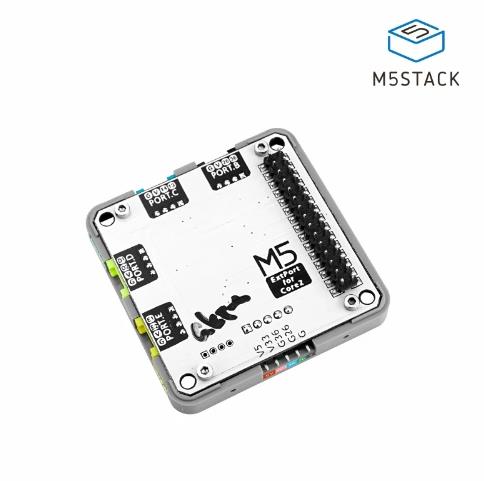

    ExtPort For Core2 is an expansion module for M5Stack Core2 converting to Grove interface. It provides PortB/C/D/E 4 Grove interfaces, and PortD/E can be configured with different GPIOs via internal dip switches.

    Notes

    Note:
    1. ExtPort For Core2 has the signature of designer.

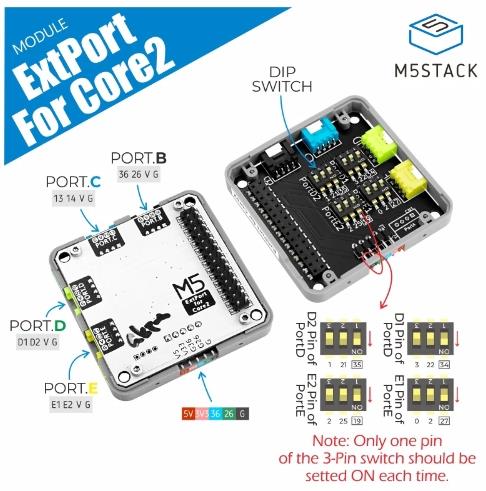

    2.Before use, please switch one of the 3-pin dip switch to be ON. Remember that, only one of the dip switch can be set to ON, or it may damage the module.
    3.If you need to use the Core2 bottom board, you will need to cut off the four support feet of the PROTO module (as shown below), to avoid interference with the bottom board, and use M3 screws to fix.

    Product Features

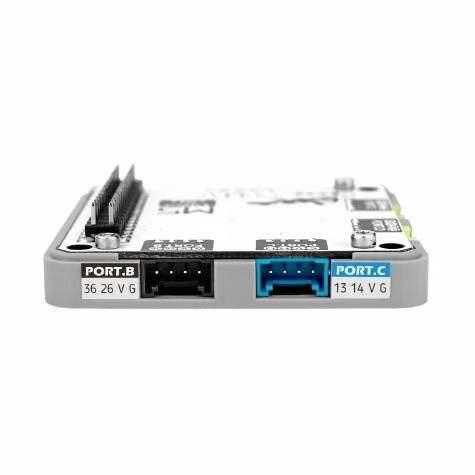

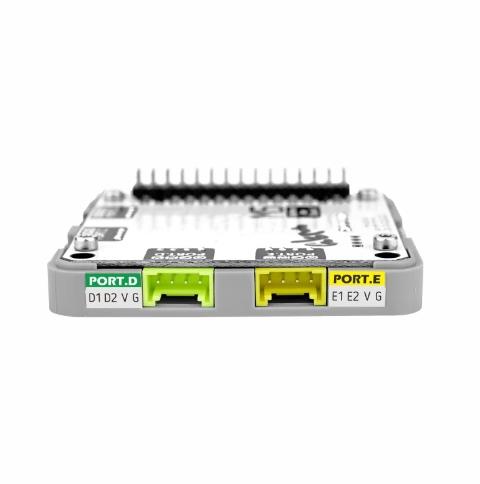

    • 4x Grove interface (PortB/C/D/E)

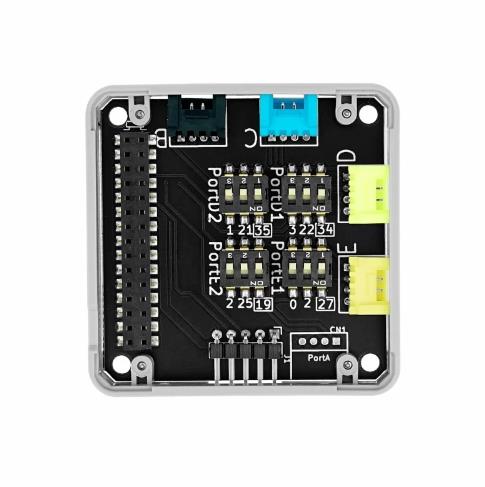

    • 4x 3-pin dip switches (PortD/E)

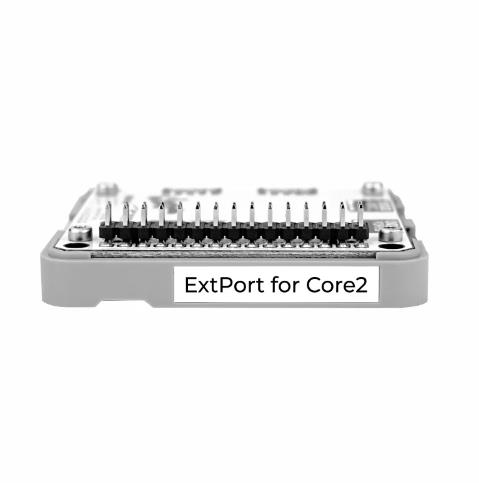

    • 1x 5Pin@2.54mm pin head

    Included

    • 1x ExtPort For Core2

    Application Scenarios

    • Multi-sensor, multi-actuator extensions
    • DIY project

    Specifications

    Spec Parameters
    Expansion ports PortB, PortC, PortD, PortE
    Net Weight 24g
    Gross Weight 58g
    Product Dimensions 54x54x13mm
    Package Size 62x58x17mm
