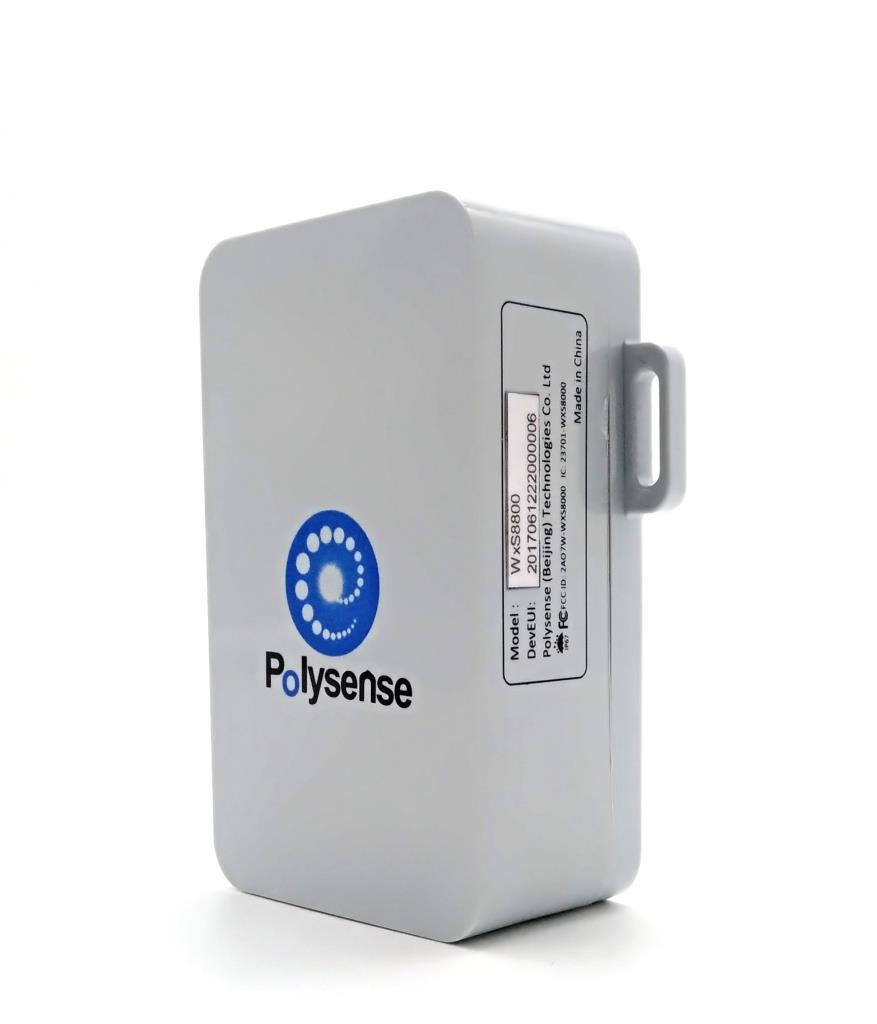

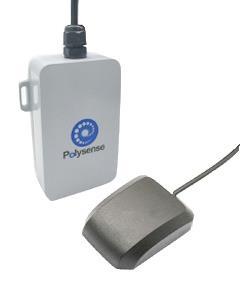

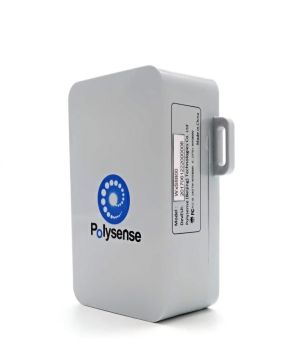

GPS Beidou positioning Sensor

Product Highlights

ü  GPS Beidou positioning Sensor

ü  High precision ,All-weather, High efficiency

ü  Receiving frequency range: 1575.42mhz, VSWR 1.5, gain: 28dB 2dB;Noise value: 1.5db

ü  Operating voltage: 3~5V

ü  Cold start 90s;Warm start 2 ~ 3 s

ü  Working temperature: - 45 ℃ ~ 85 ℃

ü  Signal good conductivity, strong anti-jamming capability

ü  Built-in permanent magnet, strong suction

ü  Cross-threshold report, plus periodic report every 2 hours (the threshold and the periodic report cycle are both user-configurable)

ü  OTA (Over The Air) firmware upgrade, including to upgrade loader and application images

ü  Analog and digital interface for external sensor connectivity and pulse counting (MPI)

ü  Low power consumption, 5 – 10 years of battery operational life with 2 x AA Li-SOCI2 Battery

ü  Optional DC 5V power source

ü  Integrated internal antenna, or optional external SMA/IPEX antenna

ü  Up to 5km reach in NLoS (Non-Line-of-Sight) and up to 18km LoS (Line-of-Sight) environments

ü  IP67 enclosure rating

Specifications

Wireless
ISM Band	EU 863 – 870MHz；US 902 – 928MHz China 779 – 787MHz；EU 433MHz AS 923MHz；CN 470 – 510MHz
Maximum Link Budget	168dB
Distance	Up to 5km NLOS; up to 18km LOS
Antenna	Integrated internal antenna or external 1/2 wavelength whip antenna (SMA)
Mechanical
Dimension	60mm x 100mm x 30mm (WxS8800)
IP rating	IP67 (WxS8800)
Operating Temperature	-40C to +85C (WxS8800)；
Cable length	0.5 meters
Total Weight	120 g
Electrical
Supply Voltage	3.0 – 3.8 VDC
Power Type	Replaceable 1 or 2 AA 3.6V Li-SOCI2 Battery; DC 4.5V – 12V optional
Compliance/Certification
	LoRaWAN 1.0.2
	FCC(America): 2AO7W-WXS8000, IC(Canada): 23701-WXS8000 CE(European Union)：B1810246 ROHS(European Union): R2BJ180927F0664E
