WAVESHARE

GSLTE Cat-1 HAT for Raspberry Pi, Low Speed 4G Module with A7600E

Ürün Kodu : LTE-WS18808
Yorumlar
2.587,44 TL + KDV
Stok Durumu:
Yok
Teklif İsteyiniz Stoklara düşünce haber ver
Not
:
Aynı Gün Kargo 15’e kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek

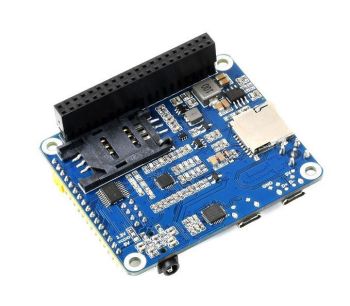

  • LTE CAT-1 HAT FOR RASPBERRY PI

    Enabling LTE Cat-1 / 2G Communication & LBS Positioning

    Based on A7600E

    Features At A Glance
    • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
    • Supports protocols including TCP/IP, HTTP(s), MQTT(s), FTP(s), and SSL
    • Supports dial-up, telephone call, SMS
    • Supports LBS base station positioning, it is able to get the approximate position info via mobile network
    • TTS (Text To Speech) feature, texts in Chinese/English can be converted into spoken words
    • Onboard USB interface, for testing AT Commands, network communication, and so on
    • Onboard audio jack for sound recording, making telephone call, listening the TTS resulting speech, etc.
    • Onboard USB to UART converter, for serial debugging, or accessing the Raspberry Pi
    • Breakout common used control pins of the A7600X module, make it easy to connect with hosts boards like Arduino/STM32
    • SIM card slot, supports 1.8V/3V SIM card
    • TF card slot for storing data like files, audio data, etc.
    • 2x LED indicators, easy to monitor the operating status
    • Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via 0Ω resistor jumper
    • Baudrate: 300bps ~ 4Mbps (default: 115200bps)
    • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
    Specifications
    FREQUENCY BAND
    LTE Cat-1 LTE-FDD: B1/B3/B5/B7/B8/B20
    LTE-TDD: B38/B40
    2G GSM/GPRS/EDGE: 900/1800 MHz
    SMS AND AUDIO
    SMS Supported types: MT, MO, CB, Text, PDU
    Storage: USIM card and ME (default)
    Audio feature Supports echo cancellation
    Supports noise reduction
    OTHER
    Power supply 5V
    Operating voltage 5V / 3.3V (configured via 0Ω resistor jumper)
    Operating temperature -30°C ~ 80°C
    Storage temperature -45°C ~ 90°C
    Dimensions 56.01mm × 65.00mm

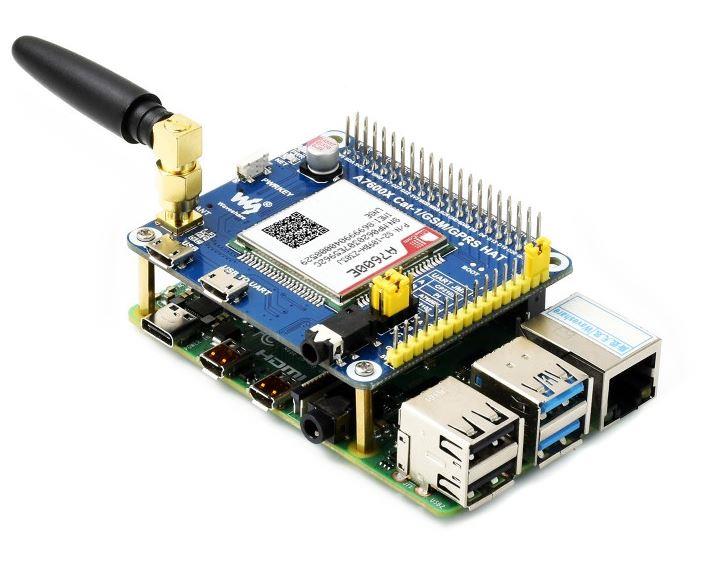

    Standard Raspberry Pi 40PIN GPIO

    Compatible With Raspberry Pi Series Boards, Jetson Nano

    Dial-Up On Windows/Linux

    LTE Cat-1: Up To 5Mbps (Uplink) / Up To 10Mbps (Downlink) *
    EDGE: Up To 236.8Kbps (Uplink / Downlink) *
    GPRS: Up To 85.6Kbps (Uplink / Downlink) *

    * stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.

    Cloud Communication

    Supports Communication Protocols Including TCP/IP, HTTP(S), MQTT(S), FTP(S), And SSL

    Telephone Call & SMS Support

    Making Telephone Call Or Sending SMS By AT Commands, With Onboard Audio Jack

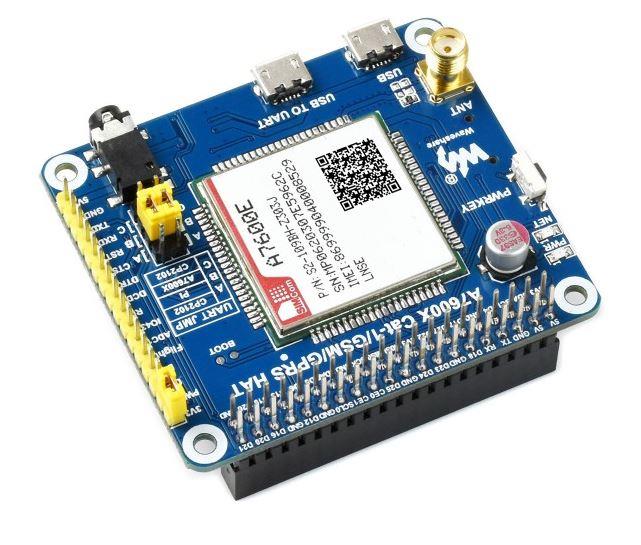

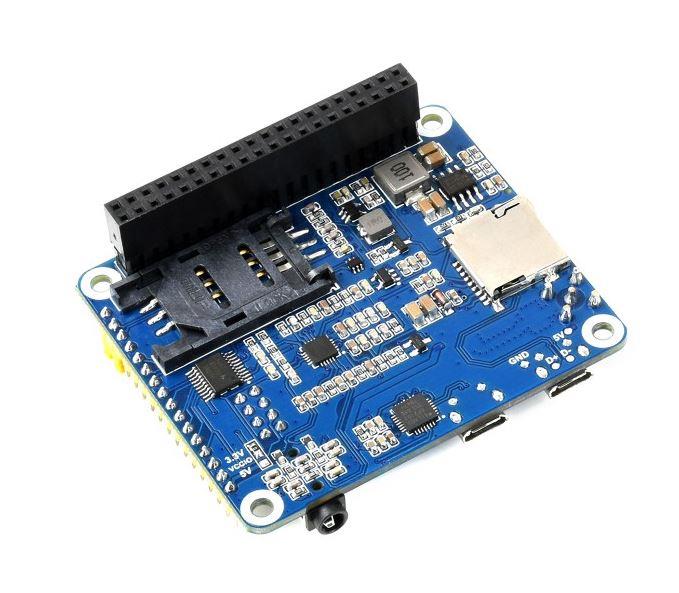

    What's On Board

    1. A7600E communication module
    2. CP2102 USB to UART converter
    3. NAU8810 audio decoder
    4. TXS0108EPWR voltage translator
      translates 3.3V/5V into 1.8V
    5. MP2128DT power chip
    6. MP1482 power chip
    7. Raspberry Pi GPIO header
      for connecting with Raspberry Pi
    8. A7600 control interface
      for connecting with host boards like Arduino/STM32
    9. SIM card slot
      supports 1.8V/3V SIM card
    10. TF card slot
      for storing data like files, audio data, etc.
    11. 3.5mm earphone/mic jack
      for audio actions like making telephone call
    12. USB interface
      for testing AT Commands, network communication, etc.
    13. USB TO UART
      for serial debugging, or login to Raspberry Pi
    14. Antenna connector
    15. Module power switch
    16. Network status indicator
    17. Power indicator
    18. UART selection jumper
      A: access Raspberry Pi via USB to UART
      B: control the A7600 by Raspberry Pi
      C: control the A7600 via USB to UART
    19. PWR on/off selection jumper
      PWR - 3V3: auto startup on power-up
      PWR - D6: startup/shutdown by the Raspberry Pi D6 pin
    20. Flight mode selection jumper
      NC by default, no flight mode control pin
      Flight - D4: flight mode is controlled by the Raspberry Pi D4 pin
    21. Operating voltage selection jumper
      configured via 0Ω resistor jumper
      VCCIO - 3.3V: set operating voltage as 3.3V
      VCCIO - 5V : set operating voltage as 5V
    22. USB connector solder pads
    23. BOOT forced programming solder pads
