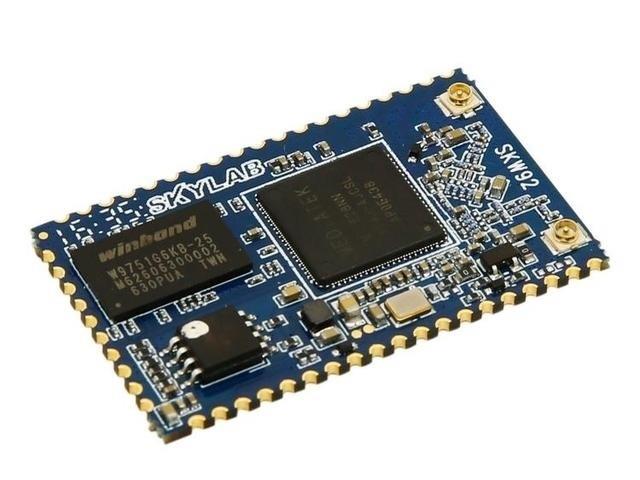

The SKW92A module includes an 802.11n MAC and baseband, a 2.4GHz radio and FEM, a 580MHz MIPS CPU, a 5-port 10/100 fast Ethernet switch. Solution for low power, low-cost, and highly integrated AP router and consumer electronic devices, the module requires only an external 3.3V power supply. It supports 802.11n operating up to 144 Mbps for 20 MHz and 300 Mbps for 40 MHz channel respectively, and IEEE 802.11b/g data rates. The module supports bridge mode and AP Client mode and Gateway mode. The high performance Module can process advanced applications effortlessly, such as routing, security and VoIP. It also includes a selection of interface to support a variety of applications, such as a USB port for accessing external storage and 3G/TLE modem. Especially in the IOT, a wide range of applications.
Features
1.Compliant to IEEE 802.11b/g/n
2.2T2R mode with support for a 300Mbps PHY data rate
3.DDR2 memory up to 512Mb
4.Flash memory up to 128Mb
5.4 LAN ports and 1 WAN port
6.Support USB 2.0 slave device for USB disk and USB 3G/4G dongle and USB camera
7.Support SD card
8.Support interface: I2C, PCM, I2S(192K/24bits), PWM, SPI slave, UART lite, GPIO
9.Security: WEP64/128, TKIP, AES, WPA, WPA2, WAPI
10.Support AP/Client/Router mode
11.RoHS compliance meets environment-friendly requirement
12. FCC/CE certificates

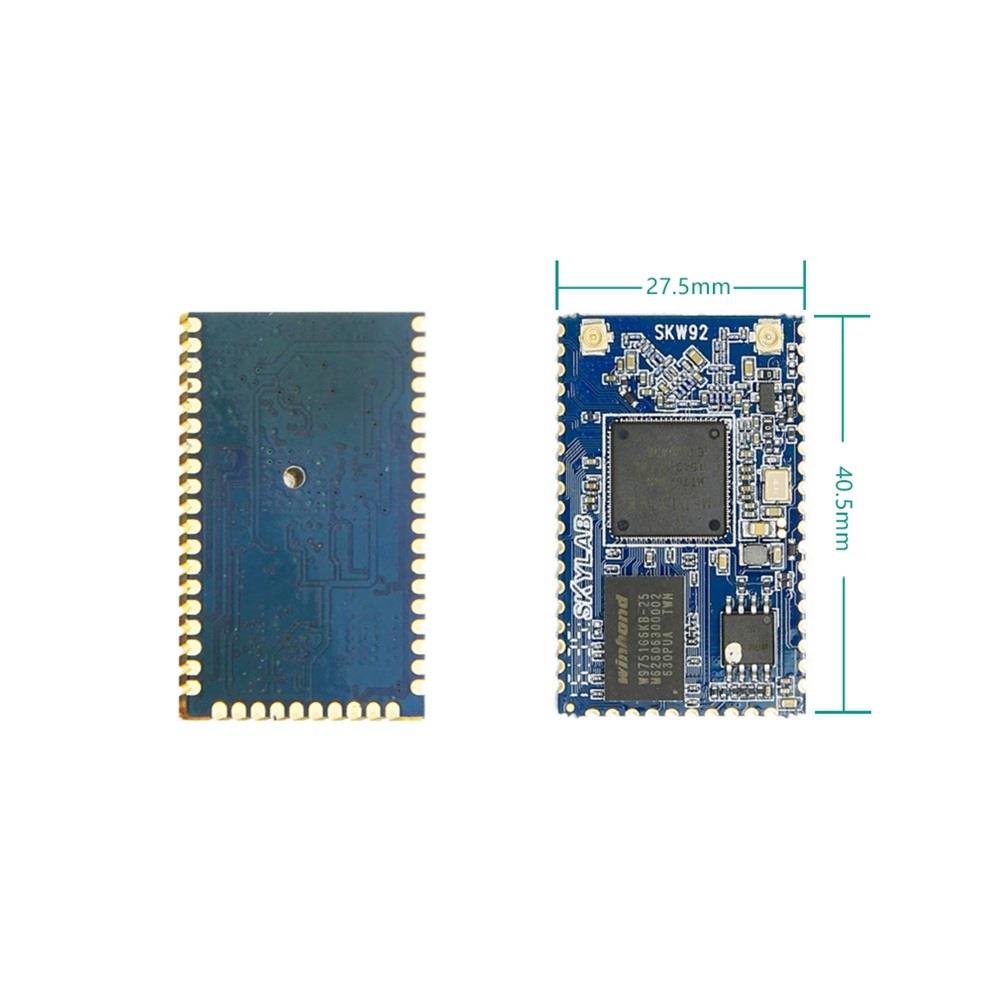

13.40.5mm(L) x 25mm(W) x 3.0mm(H) dimension
