SKYLAB

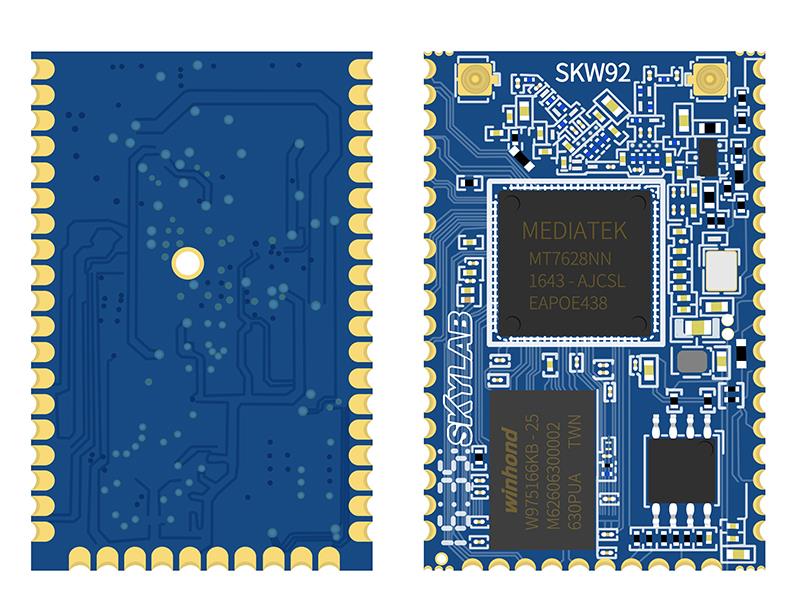

IoT wireless OpenWRT MT7628 wifi module SPI: 32MB DDR2:512M

Ürün Kodu : SKW92A_E325
Yorumlar
1.035,79 TL + KDV
Stok Durumu:
Yok
Teklif İsteyiniz Stoklara düşünce haber ver
Not
:
Aynı Gün Kargo 15’e kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Döküman
  • Beni Ara
  • Ek
  • Features
    1.Compliant to IEEE 802.11b/g/n
    2.2T2R mode with support for a 300Mbps PHY data rate
    3.DDR2 memory up to 512Mb
    4.Flash memory up to 128Mb
    5.4 LAN ports and 1 WAN port
    6.Support USB 2.0 slave device for USB disk and USB 3G/4G dongle and USB camera
    7.Support SD card
    8.Support interface: I2C, PCM, I2S(192K/24bits), PWM, SPI slave, UART lite, GPIO
    9.Security: WEP64/128, TKIP, AES, WPA, WPA2, WAPI
    10.Support AP/Client/Router mode
    11.RoHS compliance meets environment-friendly requirement
    12. FCC/CE certificates
    13.40.5mm(L) x 25mm(W) x 3.0mm(H) dimension
    Hardware Features
    Model
    SKW92A
    Antenna Type
    IPEX
    Chipset solution
    MT7628N
    Voltage
    3.3V±5%
    Dimension(L×W×H)
    40.5mm*25.0mm*3.0mm
    Wireless Features
    Wireless Standards
    IEEE 802.11b/g/n
    Frequency Range
    2412GHz—24884MHz
    Data Rates
    IEEE 802.11b: 1,2,5.5,11Mbps
    IEEE 802.11g: 6,9,12,18,24,36,48,54Mbps
    IEEE 802.11n: MCS0–MCS7 @ HT20
    MCS0–MCS7 @ HT40
    Receiver Sensitivity
    HT40 MCS7:   -70dBm@10% PER(MCS7)
    HT20 MCS7:   -73dBm@10% PER(MCS7)
    54M:   -77dBm@10% PER
    11M:   -89dBm@ 8% PER
    Modulation Technique
    DSSS (DBPSK, DQPSK, CCK)
    OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
    Wireless Security
    WPA/WPA2, WEP, TKIP and AES, WPS2.0, WAPI
    Transmit Power
    IEEE 802.11n:    16dBm @HT20/40 MCS7
    IEEE 802.11g:    16dBm @54MHz
    IEEE 802.11b:    18dBm @11MHz
    Work Mode
    Bridge/Gateway/AP Client
    Others
    Certification
    RoHS
    Environment
    Operating Temperature: -20℃~55℃
    Storage Temperature: -40℃~125℃
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
    Applications
    1.USB WiFi Camera   2. IOT (internet of things)   3.WiFi AP   4.3G/4G WiFi Router   5. WiFi Repeater       6.Building Automation   7.Home Automation    8. Smart Home Gateway   9.Industry Control
