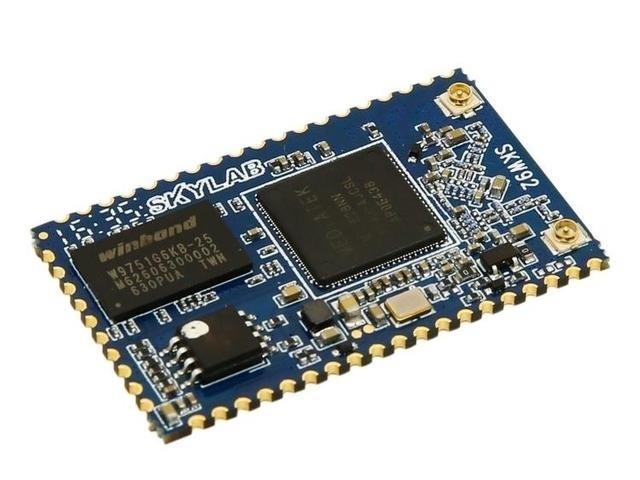

The SKW92B module integrates a 1T1R 802.11n Wi-Fi radio, a 580MHz MIPS CPU,1-port fast Ethernet PHY, USB2.0 host, I2C/PCM and multiple slow IOs.The module provides two operation modes –IoT gateway mode and IoT device mode. In IoT gateway mode, the high performance USB2.0 allows SKW92B to add 3G/LTE modem support or add a H.264 ISP for wireless IP camera. For the IoT device mode, the module supports eMMC, SD-XC and USB2.0. In IoT device mode, it further supports PWM, SPI slave, 3rd UART and more GPIOs. For IoT gateway, it can connect to touch panel and BLE, Zigbee/Z-wave and sub-1G RF for smart home control.
Features
1. Compliant to IEEE 802.11b/g/n
2. 1T1R 2.4GHz with support for a 150Mbps PHY data rate
3. DDR2 memory up to 512Mb
4. Flash memory up to 128Mb
5.4 LAN ports and 1 WAN port
6. Support USB 2.0 slave device for USB disk and USB 3G/4G dongle and USB camera
7. 24 STA-Proxy
8. Support interface: SD-XC, I2C, PCM,I2S(192K/24bits),PWM,SPI slave, UART lite,GPIO
9. Security: WEP64/128, TKIP, AES, WPA, WPA2, WAPI
10. Support IOT gateway mode and IOT device mode
11. RoHS compliance meets environment-friendly requirement
12. FCC/CE certificates

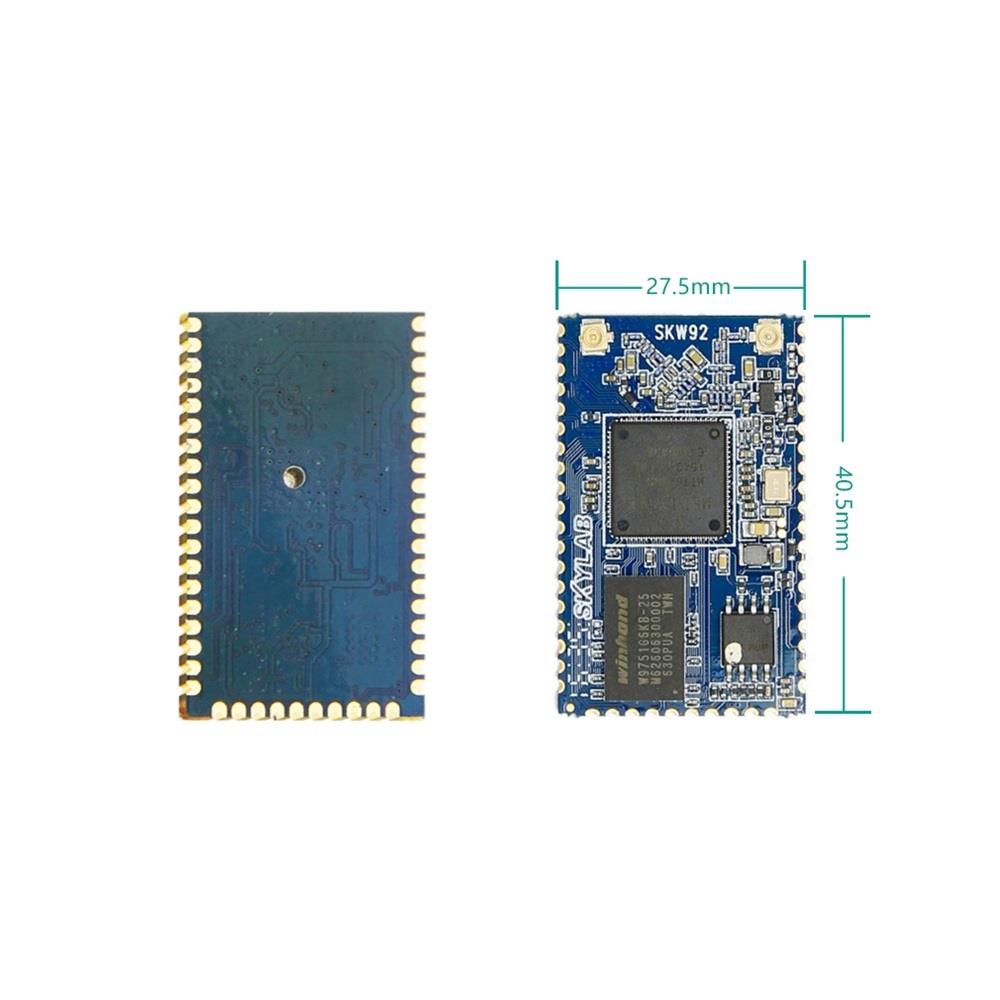

13. 40.5mm(L) x 25mm(W) x 3.0mm(H) dimension
Applications
1. IOT (internet of things)
2. 3G/4G WiFi Router
3. USB WiFi Camera
4. Building Automation
5. Home Automation
6. Smart Home Gateway
7. Smart Lighting
8. Smart Plug
9. Industry Control
