SKYLAB

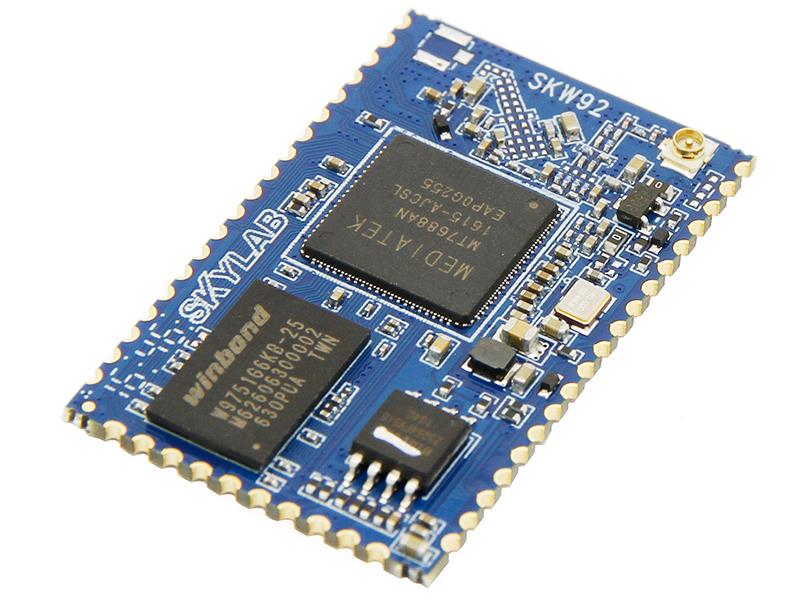

IoT wireless OpenWRT MT7688 wifi module SPI: 32MB DDR2:512M

Ürün Kodu : SKW92B_E325
Yorumlar
1.072,80 TL + KDV
Stok Durumu:
Yok
Teklif İsteyiniz Stoklara düşünce haber ver
Not
:
Aynı Gün Kargo 12.30’a kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Döküman
  • Beni Ara
  • Ek
  • Applications
    of wireless
    networking equipment
    1. IoT (internet of things)
    2. 3G/4G WiFi Router
    3. USB WiFi Camera
    4. Building Automation
    5. Home Automation
    6. Smart Home Gateway
    7. Smart Lighting
    8. Smart Plug
    9. Industry Control
    Feature
    1. Compliant to IEEE 802.11b/g/n.
    2. 1T1R 2.4GHz with support for a 150Mbps PHY data rate.
    3. DDR2 memory up to 1024Mb.
    4. Flash memory up to 526Mb.
    5. 4 LAN ports and 1 WAN port.
    6. Support USB 2.0 slave device for USB disk and USB 3G/4G dongle and USB camera.
    7. 24 STA-Proxy.
    8. Support interface: SD-XC, I2C, PCM, I2S(192K/24bits), PWM, SPI slave, UART lite, GPIO.
    9. Security: WEP64/128, TKIP, AES, WPA, WPA2, WAPI.
    10. Support IoT gateway mode and IoT device mode .
    11. RoHS compliance meets environment-friendly requirement.
    12. Conform to FCC/CE/IC/RoHS certification standards.
    13. 40.5mm(L) x 25mm(W) x 3.0mm(H) dimension.
    Hardware Features
    Model
    SKW92B
    Antenna Type
    IPEX
    Chipset solution
    MT7688A
    Voltage
    3.3V±5%
    Dimension(L×W×H)
    40.5mm*25.0mm*3.0mm
    Wireless Features
    Wireless Standards
    IEEE 802.11b/g/n
    Frequency Range
    2412GHz—24884MHz
    Data Rates
    IEEE 802.11b: 1,2,5.5,11Mbps
    IEEE 802.11g: 6,9,12,18,24,36,48,54Mbps
    IEEE 802.11n: MCS0–MCS7 @ HT20
    MCS0–MCS7 @ HT40
    Receiver Sensitivity
    HT40 MCS7:   -70dBm@10% PER(MCS7)
    HT20 MCS7:   -73dBm@10% PER(MCS7)
    54M:   -77dBm@10% PER
    11M:   -89dBm@ 8% PER
    Modulation Technique
    DSSS (DBPSK, DQPSK, CCK)
    OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
    Wireless Security
    WPA/WPA2, WEP, TKIP and AES, WPS2.0, WAPI
    Transmit Power
    IEEE 802.11n:    16dBm @HT20/40 MCS7
    IEEE 802.11g:    16dBm @54MHz
    IEEE 802.11b:    18dBm @11MHz
    Work Mode
    IOT Gateway/IOT Device
    Others
    Certification
    RoHS
    Environment
    Operating Temperature: -20℃~55℃
    Storage Temperature: -40℃~125℃
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
