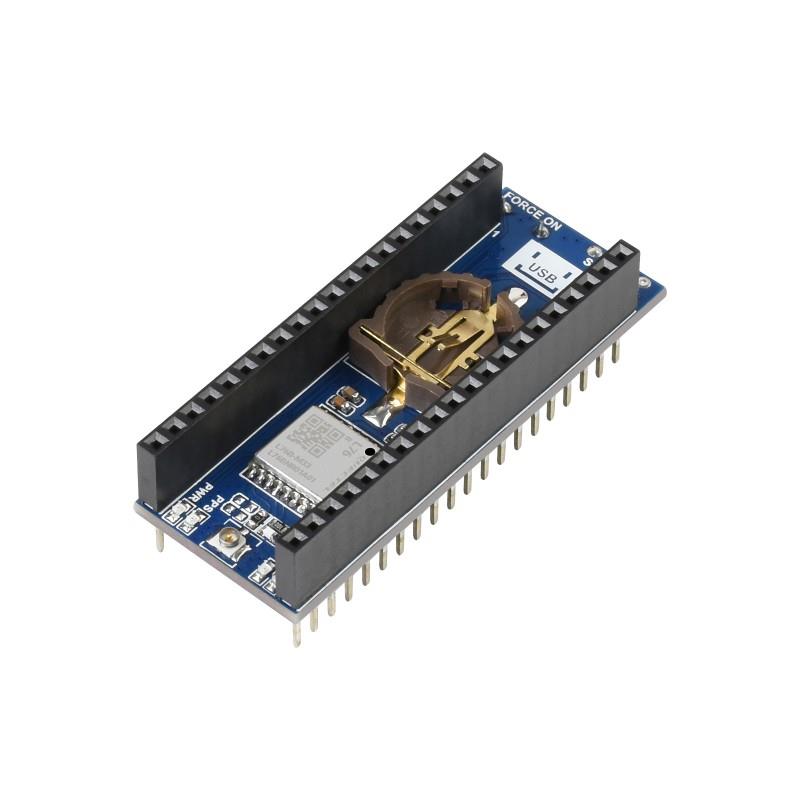

L76B GNSS Module for Raspberry Pi Pico, GPS / BDS / QZSS Support

Ürün Kodu : LTE-WS20072-2873
Yorumlar
1.138,47 TL + KDV
Stok Durumu:
Yok
Teklif İsteyiniz Stoklara düşünce haber ver
Not
:
Aynı Gün Kargo 15’e kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek
  • L76B GNSS Module For Pico

    GNSS Module Based On L76B, Designed For Raspberry Pi Pico

    Features At A Glance

    The Pico-GPS-L76B is a GNSS module designed for Raspberry Pi Pico, with multi satellite systems support including GPS, BDS, and QZSS. It has advantages such as fast positioning, high accuracy, and low power consumption, etc. Combined with the Raspberry Pi Pico, it's easy to use global navigating function.

    • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
    • Multi satellite systems support: GPS, BDS, and QZSS
    • EASY, self track prediction technology, help quick positioning
    • AlwaysLocate, intelligent controller of periodic mode for power saving
    • Supports D-GPS, SBAS (WAAS/EGNOS/MSAS/GAGAN)
    • UART communication baudrate: 4800~115200bps (9600bps by default)
    • Onboard battery holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
    • 4x LEDs for indicating the module operating status
    • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
    Specifications
    GNSS
    Frequency band:
    GPS L1 (1575.42Mhz)
    BD2 B1 (1561.098MHz)    		 Channels: 33 tracking ch, 99 acquisition ch, 210 PRN ch
    C/A code
    SBAS: WAAS, EGNOS, MSAS, GAGAN
    Horizontal position accuracy
    (autonomous positioning)    		 <2.5m CEP
    Time-To-First-Fix @ -130dBm
    (EASY enabled)    		 Cold starts: <15s
    Warm starts: <5s
    Hot starts: <1s
    Sensitivity Acquisition: -148dBm
    Tracking: -163dBm
    Re-acquisition: -160dBm
    Dynamic performance Altitude (max): 18000m
    Velocity (max): 515m/s
    Acceleration (max): 4g
    OTHERS
    Communication interface UART
    Baudrate 4800~115200bps (9600bps by default)
    Update rate 1Hz (default), 10Hz (max)
    Protocols NMEA 0183, PMTK
    Power supply voltage 5V
    Operating current 13mA
    Overall current consumption < 40mA@5V (Continue mode)
    Operating temperature -40℃ ~ 85℃
    Dimensions 52 × 21mm

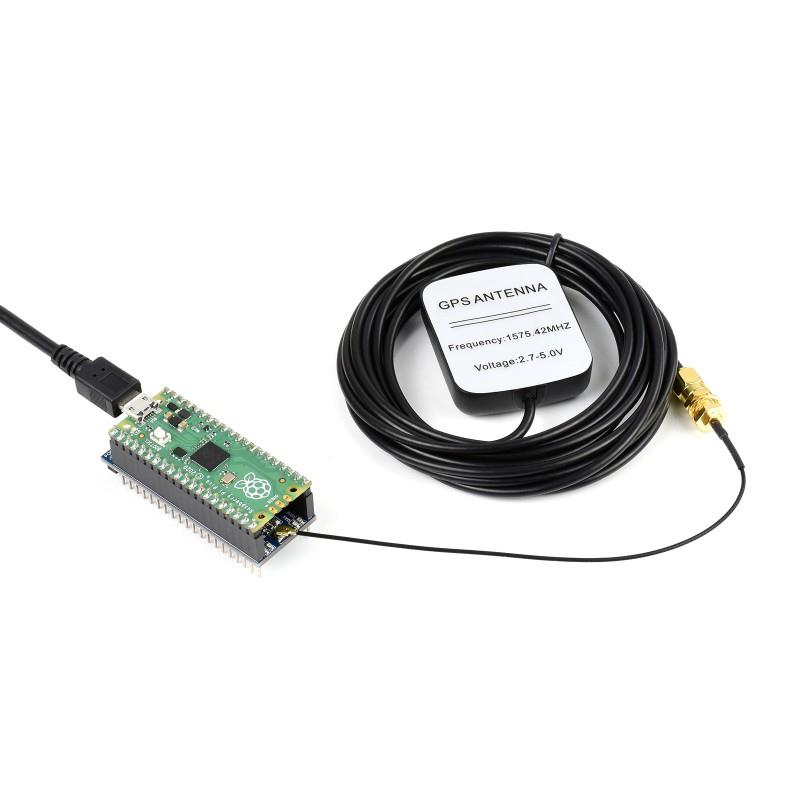

    Raspberry Pi Pico Header Compatibility

    Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

    Raspberry Pi Pico is NOT included.
    GNSS Positioning

    Multi Satellite Systems Support: GPS, BDS, And QZSS

    Augment Systems Support

    Augment System Is Aimed At Improving The Accuracy, Integrity, Reliability, And Availability Of Positioning And Navigation

    Supports Augment Systems Including D-GPS, SBAS (WAAS/EGNOS/MSAS/GAGAN)

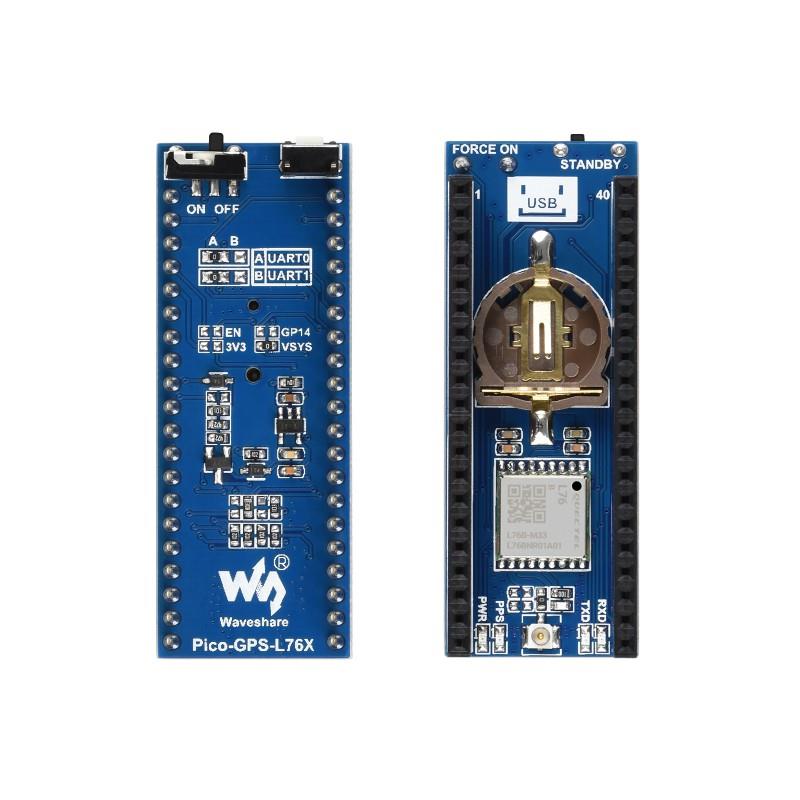

    What's On Board
    1. L76B module
    2. Battery holder
      supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
    3. GNSS antenna connector
    4. Raspberry Pi Pico header

    1. Standby mode switch
    2. Backup mode wakeup button
    3. RT9193-33
      power chip
    4. Status indicators
      RXD/TXD: UART TX/RX indicator
      PPS: GPS status indicator
      PWR: power indicator
    Pinout Definition
    Outline Dimensions
    Resources & Services
    Wiki: Pico-GPS-L76B
