LANSITEC

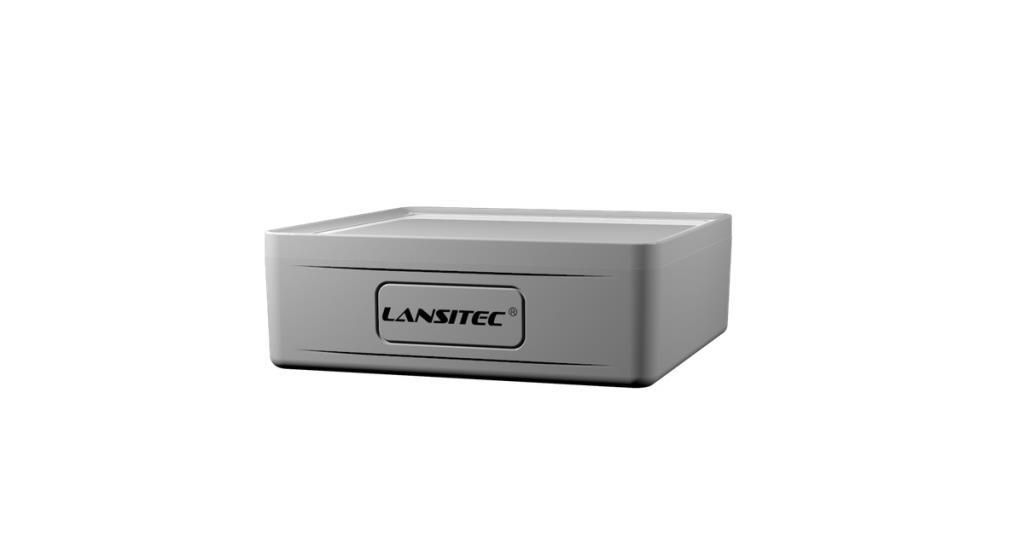

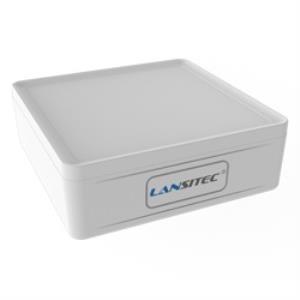

Lansitec LoRaWAN NB-IoT Macro Bluetooth Gateway

Ürün Kodu : LNS-NB
Yorumlar
8.740,16 TL + KDV
Stok Durumu:
Yok
Teklif İsteyiniz Stoklara düşünce haber ver
Not
:
Aynı Gün Kargo 12.30’a kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek

  • Connectivity

    Protocol: MQTT, HTTP(S)

    LoRaWAN: Optional

    LTE-M Band: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
    Data Rate (Peak): 588 (DL), 1119 (UL)

    NB-IoT Band: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
    Data Rate (Peak): Cat NB2: 127 (DL) 158.5 (UL) Cat NB1: Max. 32 (DL) Max. 70 (UL)

    Wifi Band: Optional, 2.4GHz, positioning only
    Data Rate (Peak): N/A

    SIM Card Band: Nano and eSIM
    Data Rate (Peak): N/A

    Bluetooth

    Bluetooth Protocol: 5.0, iBeacon, Eddystone, private

    Bluetooth TX Power: -20 to +4 dBm TX power, configurable in 4 dB steps

    Bluetooth Sensitivity: -96dBm

    Mechanics

    Positioning Precision: 160x160x55mm

    Ingress Protection: IP66

    Housing Materials: Anti-UV PC-ABS

    Operating Temperature: -45°C~+85°C

    Storage Temperature: -60°C~+90°C

    Operating Humidity: 0% ~ 95% (non-condensing)

    PCB Coating

    Water proof coating

    Weight

    530g

    IP Rating

    IP66

    Power

    Battery: Li-SoCl2 19000mAhx2,

    Optional: 19000mAhx4/19000mAhx6

    Standby Current: 25μA

    Max. Current: 300mA

    Bluetooth Positioning: Approx. 1m times

    Battery Life: 5 years @ 5s Bluetooth receiving duration and 240s report interval:

    Certification

    Standby current: 25μA Total Uplink Reports: 720,000 83 months @ 5 minutes report interval

    Max. Current

    CE, FCC, RCM, BQB

    Function

    Adjustable Position Report Interval: 5s x n (1 to 65536)

    Heartbeat Report Interval: 30s x n (1 to 65536)

    Switch

    Mechanical

    Customized data filter and data report

    Support

    FOTA over Bluetooth

    Support

    Encryption

    TLS1.2

    Max. Uplink Report Bytes: 1400
    Max. Beacons Supported: 105

    Power
