  • LinkIt Smart 7688

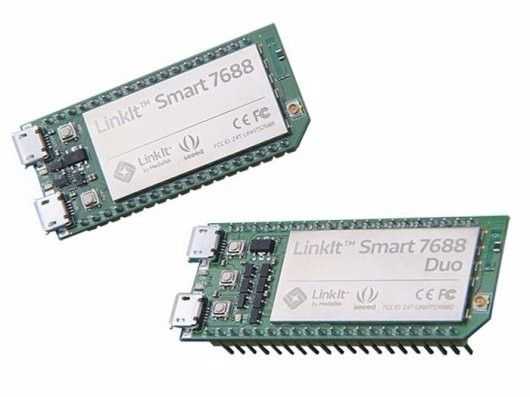

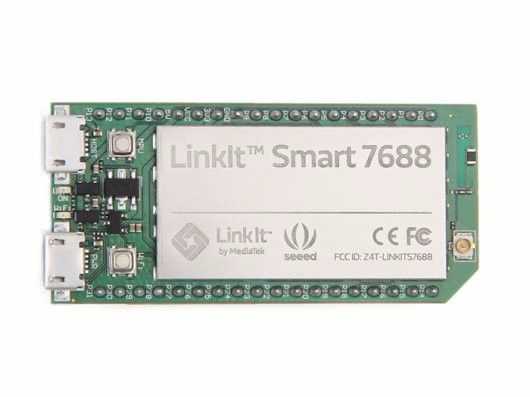

    The Linklt Smart 7688 development platform offers two developments boards:

    • Linklt Smart 7688: MPU only. Powered by Media Tek MT7688.

    • Linklt Smart 7688 Duo: MPU and MCU. Powered by Media Tek MT7688 and ATmega 32U4.

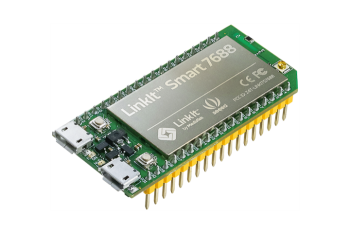

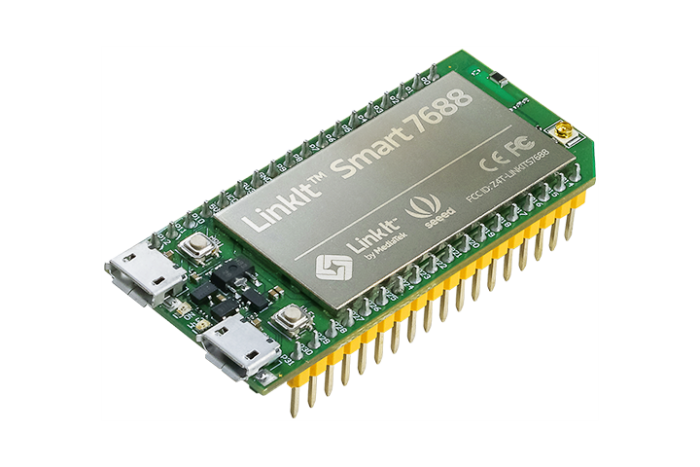

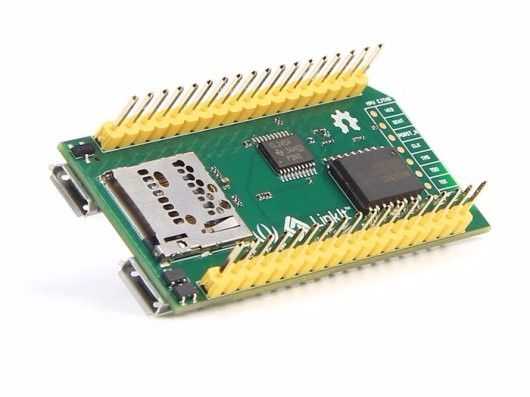

    LinkIt Smart 7688 is an open development board which is based on OpenWrt Linux distribution and MT7688. The board is designed especially to enable the prototyping of Rich IoT Application for Smart Home. The board offers you the memory and packet storage to enable robust video processing. The platform also offers options to create device applications in Python, Node.js and C programming language.



    LinkIt Smart 7688 is a co-design product by Seeed Studio and MediaTek. It brings together the parties' knowledge in open hardware and industry leading reference designs for IoT devices to create this powerful development board.



    LinkIt Smart 7688 is fully supported on the MediaTek Labs site: check out the LinkIt sectionandregister here to download the SDK, participate in the Forums, and more.



    Note (important)

    In order to protect the product from improper operation, please pay attention to below notes.

    • Choose more reliable power adapter with stable output.

    • Recommended conditions of power input source for 7688:

         1. Overshoot voltage of power input should not over 5.5.

         2. Voltage wave should be within ±100mV of rated voltage.



    Features

    • Single input single output(1T1R) Wi-Fi 802.11 b/g/n.

    • Pin-out for GPIO, I2C, I2S, SPI, UART, PWM and Ethernet Port.

    • 580 MHz MIPS CPU.

    • 32MB flash and 128MB DDR2 RAM.

    • USB host.

    • Micro SD slot.

    Technical Details

    Dimensions 56mm x 26mm x 18mm
    Weight G.W 13g
    Battery Exclude
    MPU
    Chipset MT7688AN
    Core MIPS24KEc
    Clock speed 580MHz
    Working voltage 3.3V
    PCB Size
    Dimensions 55.7 x 26 mm
    Memory
    Flash 32MB
    RAM 128MB DDR2
    Power Source
    USB Power 5V (USB micro-B)
    VCC 3.3V (Pin Breakout)
    GPIO
    Pin Count 22 (MT7688AN)
    Voltage 3.3V
    PWM
    Pin Count 4 (MT7688AN)
    Voltage 3.3V
    Max. Resolution 7 bits (customizable)
    Maximum Frequency@Resolution 100kHz@1-bit50kHz@2-bit / 25kHz@3-bit 12.5kHz@4-bit / 6.25kHz@5-bit3.125kHz@6-bit / 1.5625kHz@7-bit (Standard mode)
    Maximum Frequency@Resolution 40MHz@1-bit20MHz@2-bit / 10MHz@3-bit 5MHz@4-bit / 2.5MHz@5-bit1.25Mhz@6-bit / 625kHz@7-bit (Fast mode)
    External Interrupts
    Pin Count 22 (MT7688AN)
    SPI
    Set count 1 (MT7688AN)
    Pin numbers P22, P23,P24 (Shared with on-board flash), P25
    Max. Speed 25 MHz
    SPI Slave
    Set count 1 (MT7688AN)
    Pin numbers P28, P29, P30, P31
    Max. Speed 25 MHz
    I2S
    Set count 1 (MT7688AN)
    Pin numbers P10, P11, P12, P13
    I2C
    Set count 1
    Pin numbers P20, P21
    Speed 120K/400K
    UART Lite
    Set count 3 (MT7688AN)
    Pin numbers P8, P9, P16, P17, P18, P19
    Max. Speed 0.5Mbps
    USB Host
    Set count 1 (MT7688AN)
    Pin numbers P6, P7
    Speed Micro-AB
    Communication
    Wi-Fi 1T1R 802.11 b/g/n (2.4G)
    Ethernet 1-port 10/100 FE PHY
    Pin numbers P2, P3, P4, P5
    User Storage
    SD Card Micro SDSDXC
