Lora Module. 30dBm. 12km. SX1268. 410~493MHz. 7000m.

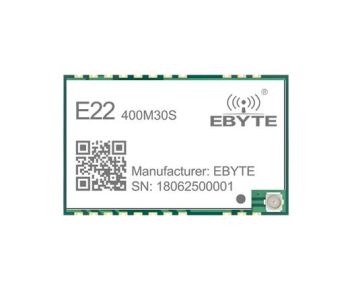

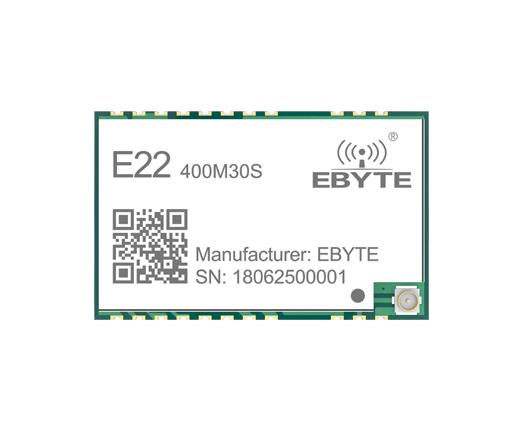

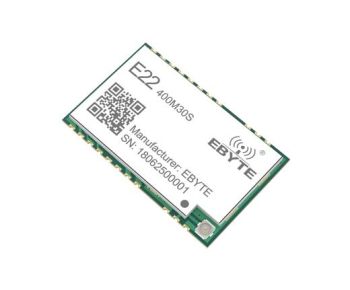

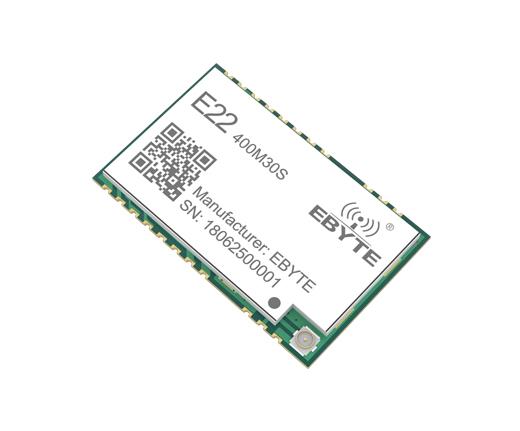

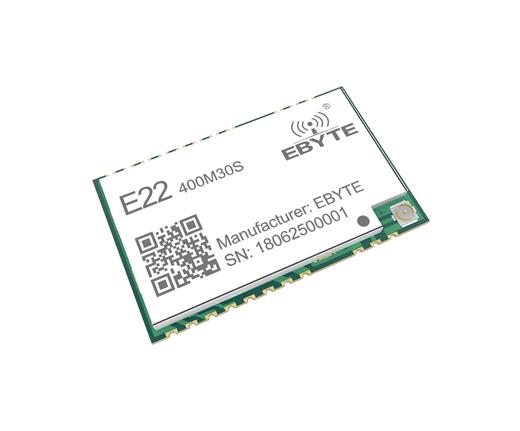

Name: Lora Module. 30dBm. 12km. SX1268. 410~493MHz. 7000m.
Brand: EBYTE
SKU: E22-400M30S
Price: 714.13 TRY
Availability: InStock

Ürün Kodu : E22-400M30S

595,11 TL + KDV

Stok Durumu:

Var (12 Adet)

Toptan alın indirim fırsatlarını yakalayın!

Miktar

İndirim

5 - 9

10 - 20

%13

Not

Aynı Gün Kargo 15’e kadar aynı gün kargo

Worldwide Shipment

Next Day Shipment

Kampanya

RF Parameter	Value	Remark
Working frequency	410~493 MHz	-
Transmitting power	30 dBm	Max. Power (1W)
Receiving sensitivity	-150 dBm	-
Air data rate	0.018k~300kbps	-
Test distance	12000m	In open and clear air, with maximum power, 5dBi antenna gain, height of 2m

Hardware Parameter	Value	Remark
Size	24 * 38.5 mm
Antenna type	IPEX / Stamp hole
Communication interface	SPI
Package	SMD

Electronic parameter	Min.	Typ.	Max.	Unit	Condition
Power supply	2.5	5	5.5	V
Communication level	1.8	3.3	3.7	V
Transmitting current	600	650	700	mA	30dBm（1W）
Receiving current	12	14	16	mA
Sleep current	1	3	5	nA
Operating temperature	-40	20	85	℃
Operating humidity	10	60	90	%
Storage temperature	-40	20	125	℃
