M.2 To PCIe 4-Ch Expander

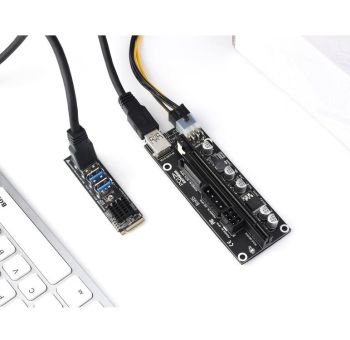

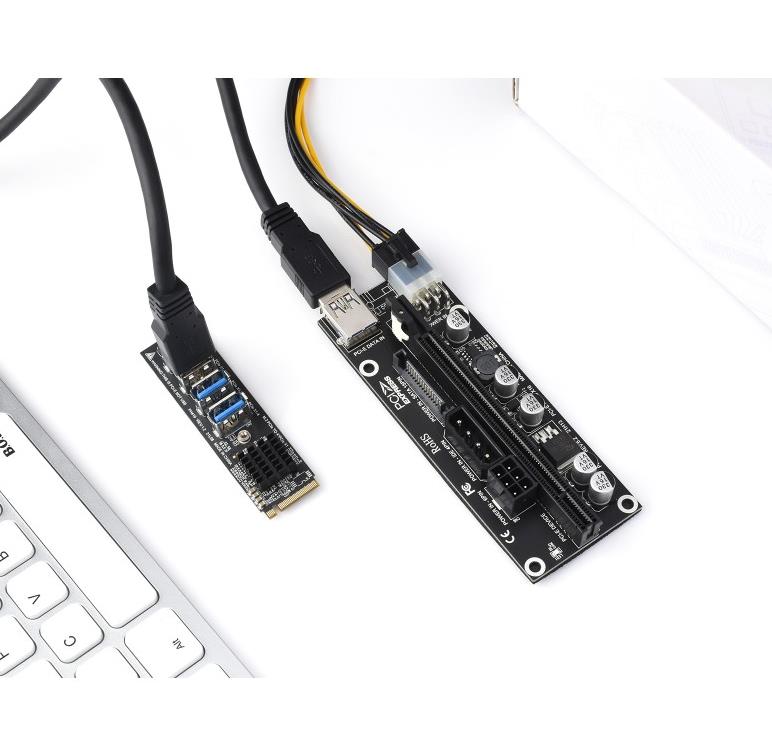

Using With PCIe X1 to PCIe X16 Expander

Specifications
MODEL |
M2-PCIe-Switch-4P |
TRANSFER INTERFACE |
PCIe X1 female port × 4, M.2 Mkey male port × 1 |
OPERATING SYSTEM |
Windows / Linux |
DIMENSIONS |
80.0 × 22.0mm |
MODEL |
PCIe-X1-TO-PCIe-X16-Cable |
TRANSFER INTERFACE |
PCIe X1 female port × 1, PCIe X16 port × 1 |
POWER SUPPLY INTERFACE |
6PIN header × 2 4PIN header × 1 SATA 15PIN header × 1 |
DIMENSIONS |
119.80 × 44.83mm |
For M.2 M Interface To PCIe Ports
M2-PCIe-Switch-4P Supports 1-Ch M.2 M To 4-Ch PCIe X1
(Note: The Output Are PCIe X1 Ports, Not The USB Ports)
PCIe-X1-TO-PCIe-X16-Cable Supports PCIe X1 To PCIe X16

Reinforcement Design, Better Protection

Multi-Layer Circuit Boards For Lossless Transmission

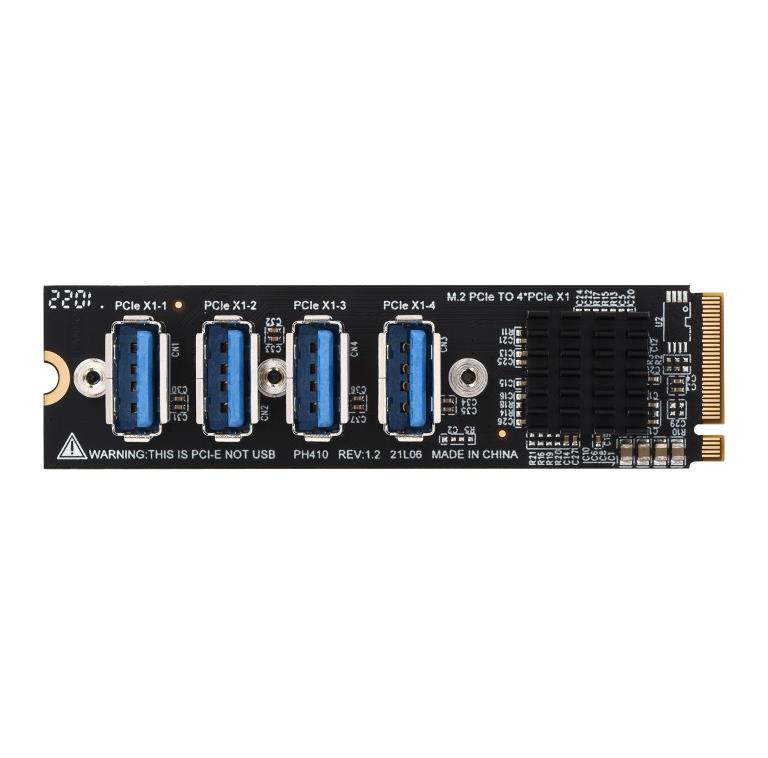

Neat Interface Layout
Can Effectively Reduce Interface Interference And Ensure Stable Data Transmission

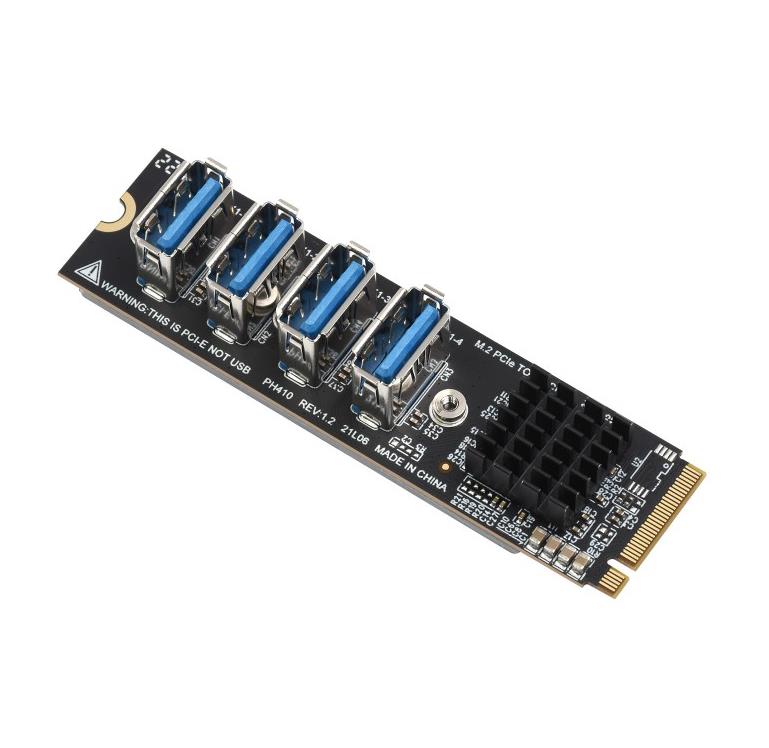

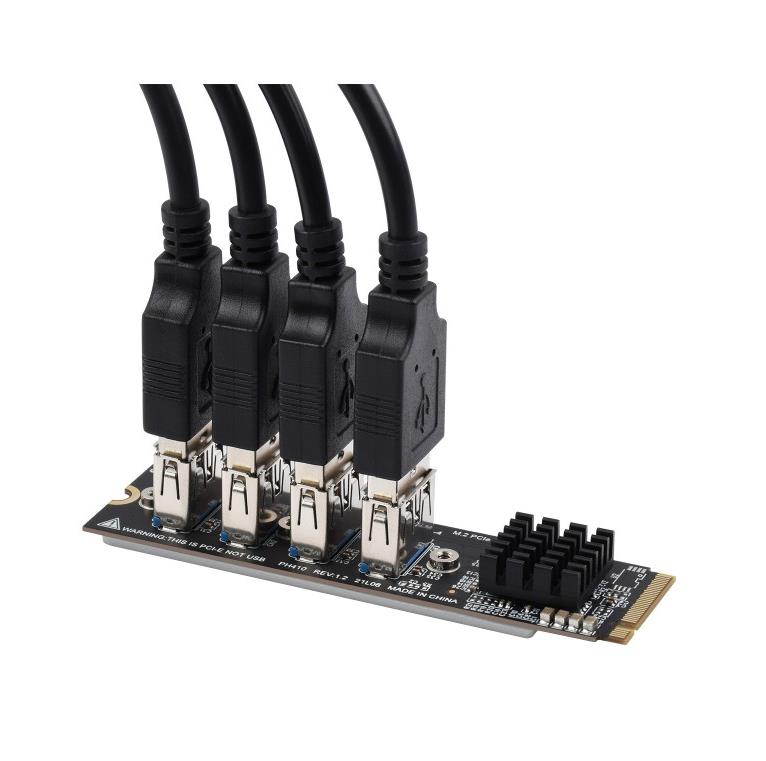

Expand To 4-Ch PCIe Port
Suitable For Application Scenarios That Require Multiple PCIe Ports At The Same Time

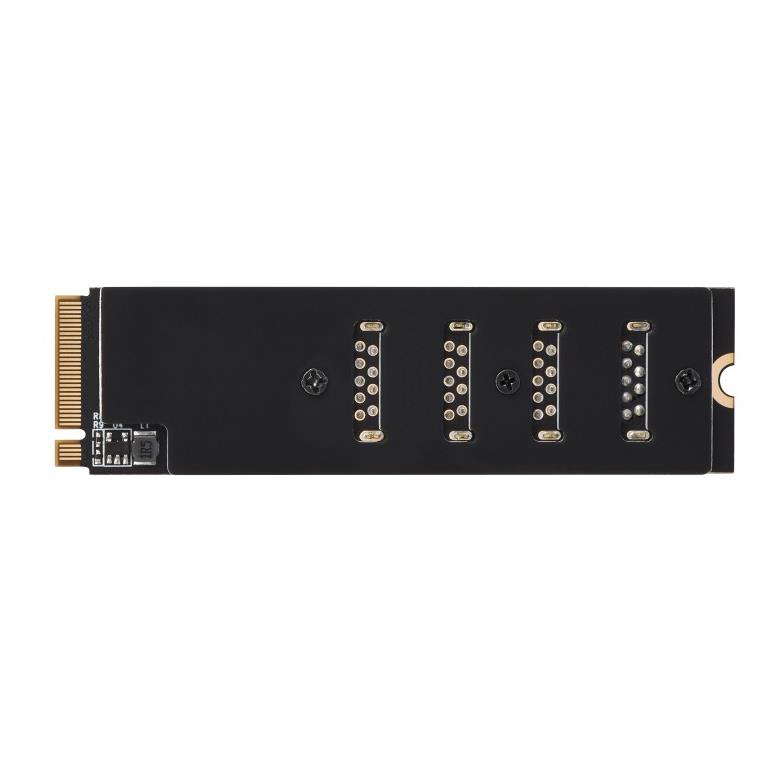

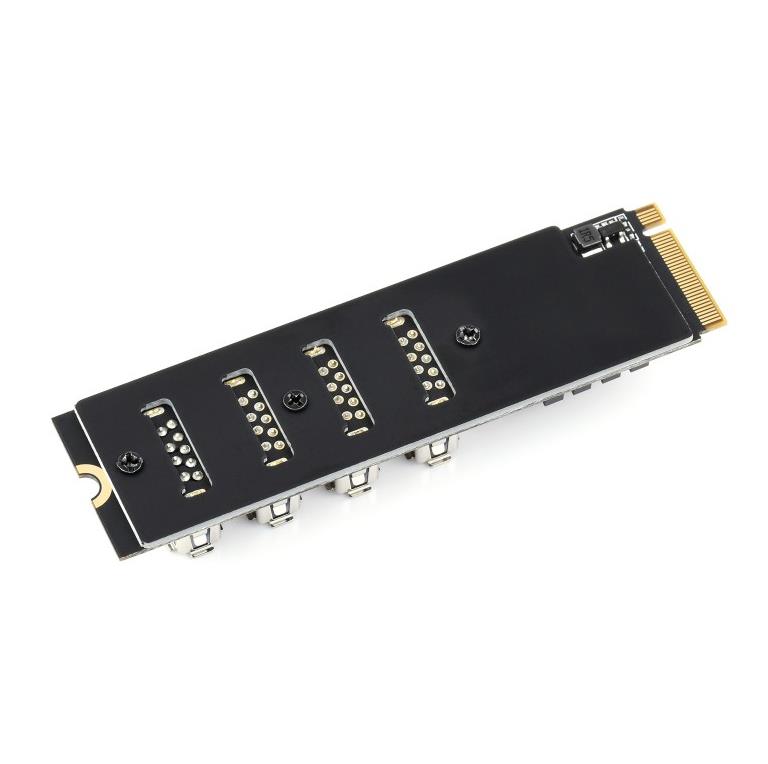

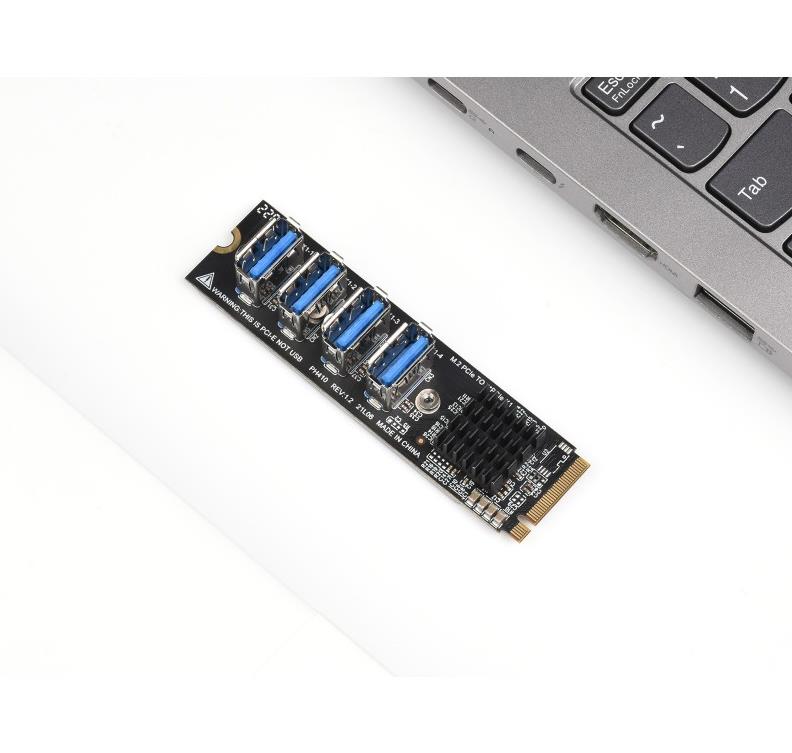

Product Show

Outline Dimensions
