PRODUCT DETAILS
Description

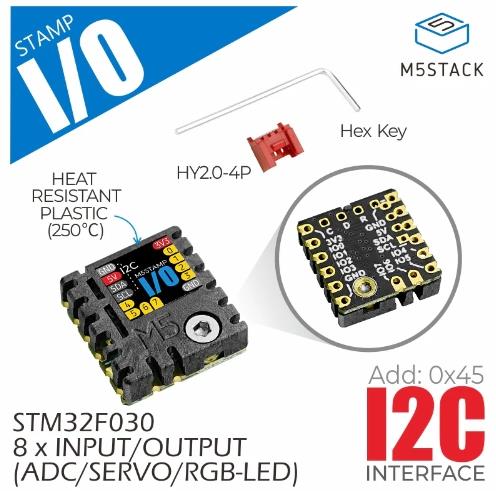

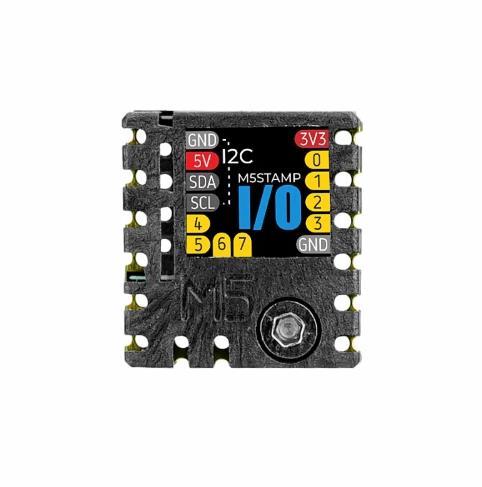

STAMP IO is an

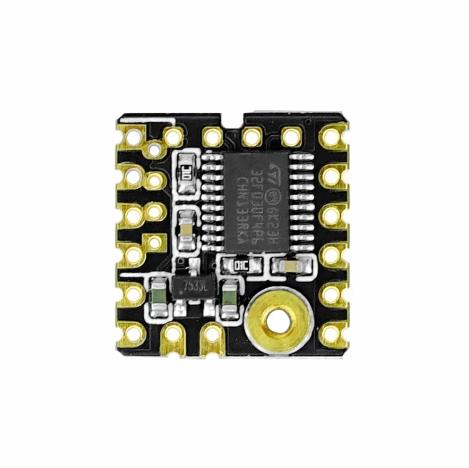

IO expansion boardbased on STM32F030 main controller, using I2C communication interface, providing 8 IO expansion. Each IO supports independent configuration ofdigital input/output,ADC,SERVO control,RGB LED controlmodes. Suitable for multi-channel digital/analog signal acquisition, and lighting/servo control applications.Product Features
- 8-channel input and output expansion.
- Digital input/output
- ADC input
- SERVO control (PWM)
- RGB LED control
- I2C communication interface:
- Supports configuration of I2C address
- Multiple soldering options
- Three types soldering options are available (SMT, DIP, Jumper wire),

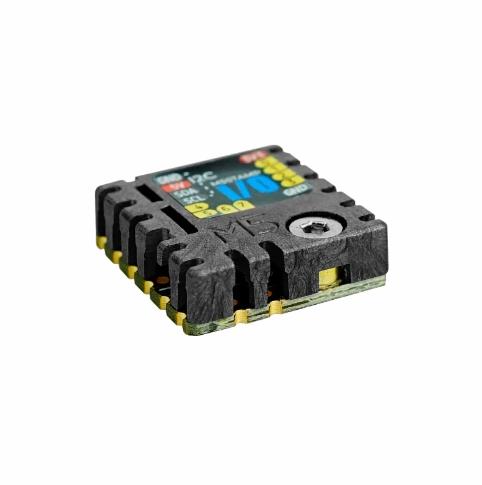

- With high-temperature resistant plastic enclosure, Peak temperature = 230℃
Included
- 1x STAMP IO

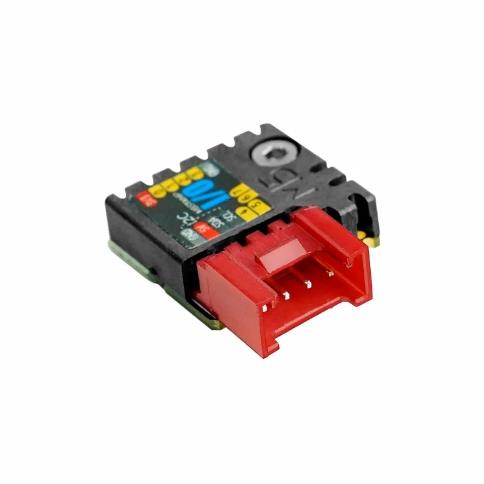

- 1x HY2.0-4P female connector (red)
- 1x Hex key 1.5mm
Applications
- IO Expansion
- Servo control
- Multiple lighting control
- Multiple analog signal acquisition
Applications
- IO Expansion
- Servo control
- Multiple lighting control
- Multiple analog signal acquisition
Specifications
Specification Parameters MCU STM32F030 I2C Address 0x45(default) Number of IO expansions 8 IO Support Mode Digital I/O, ADC, SERVO control, RGB LED control IO Support Input/Output Levels 3.3V Net Weight 2.5g Gross Weight 4.3g Product Size 15*4.7*16mm Package Size 93*138mm LEARN AND DOCUMENTS
