  • NB-IOT / CAT-M / GPRS / GNSS HAT

    Low Power Narrow Band Cellular IoT Communication Module For Raspberry Pi

    Based on SIM7000G

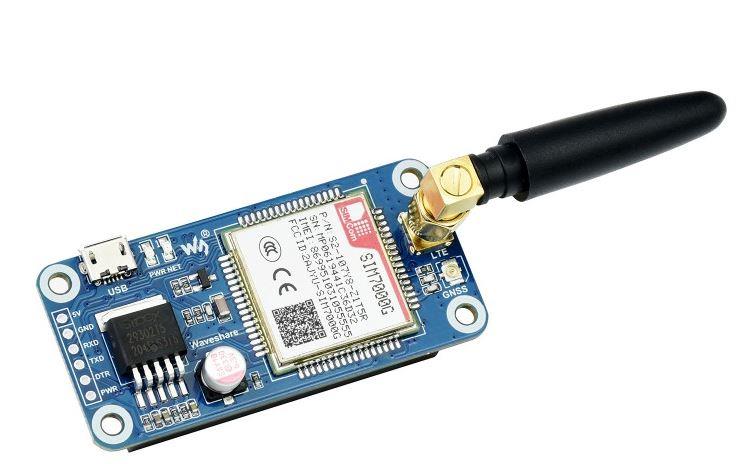

    This is a telecommunication HAT for Raspberry Pi which supports global bands of NB-IoT, Cat-M, and GPRS, as well as GNSS positioning function. Due to its advantages like small size, low delay, and wide coverage, it is the ideal choice for IoT applications such as intelligent instruments, asset tracking, remote monitoring, e-health, and so on.

    Features At A Glance
    • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
    • Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc.
    • Supports GNSS positioning (GPS, BeiDou, GLONASS)
    • Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
    • Breakout UART control pins, to connect with host boards like Arduino/STM32
    • Onboard voltage translator, 3.3V by default, allows to be switched to 5V via 0Ω resistor
    • SIM card slot, compatible with both normal SIM card and NB-IoT specific card
    • 2x LED indicators, easy to monitor the working status
    • Baudrate: 300bps~3686400bps (115200bps by default)
    • Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
    • Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT
    • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
    Specifications
    NB-IOT / CAT-M / 2G
    Frequency bands NB-IoT: B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B19, B20, B25, B26, B28
    Cat-M: B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B19, B20, B25, B26, B28, B39
    GPRS/EDGE: 850, 900, 1800, 1900MHz
    Data rate NB-IoT: 34(DL)/66(UL)
    Cat-M: 300(DL)/375(UL)
    EDGE: 236.8(DL)/236.8(UL)
    GPRS: 85.6(DL)/85.6(UL)
    SIM card support NB-IoT: NB Specific (Not Included)
    Cat-M/GPRS/EDGE: Normal SIM (Not Included)
    Applicable region Global
    GNSS
    Satellite systems GPS, BeiDou, GLONASS
    Receiver type 16-channel
    C/A Code
    Sensitivity Tracking: -162 dBm (GPS) / -157 dBm (GLONASS) / TBD (BD)
    Cold starts: -148 dBm
    Time-To-First-Fix Cold starts: <35s
    Hot starts: <1s
    Accuracy Position: <2.5m CEP
    OTHER
    Power supply 5V
    Operating voltage 5V / 3.3V (3.3V by default)
    Sleep Mode current 1.2mA (@DRX=2.56s)
    Power Save Mode current 9uA
    Operating temperature -40°C ~ 85°C
    Storage temperature -45°C ~ 90°C
    Dimensions 30.2mm x 65mm
    Standard Raspberry Pi 40PIN GPIO

    Compatible With Raspberry Pi Series Boards

    Global Band Support Of NB-IoT/Cat-M/2G

    Cloud Communication

    Supports Communication Protocols Including
    TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail...

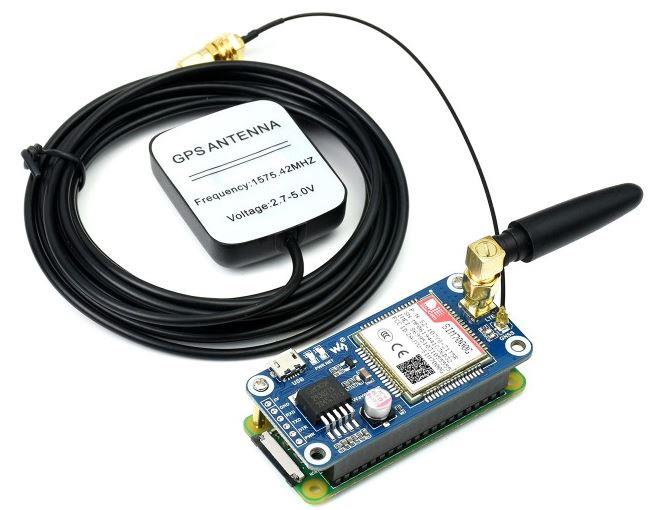

    GNSS Positioning

    Supports GPS, BeiDou, GLONASS Positioning

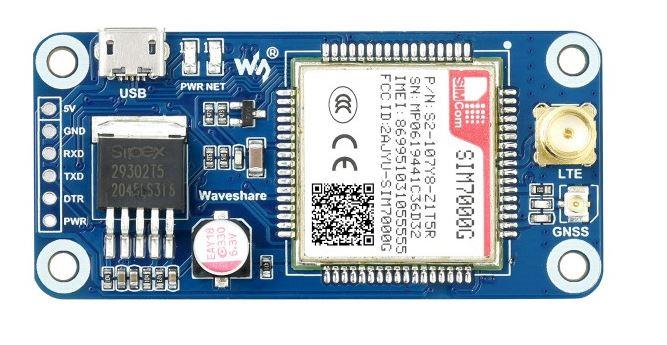

    What's On Board

    1. SIM7000G
    2. SPX29302 power chip
    3. RT9193-33 power chip
    4. Raspberry Pi GPIO header
      for connecting with Raspberry Pi
    5. USB interface
      for testing AT Commands, getting GPS positioning data, etc.
    6. SIM7000G control interface
      for connecting with host boards like Arduino/STM32
    7. SIM card slot
      supports 1.8V/3V SIM card
    8. GNSS antenna connector
    9. LTE antenna connector

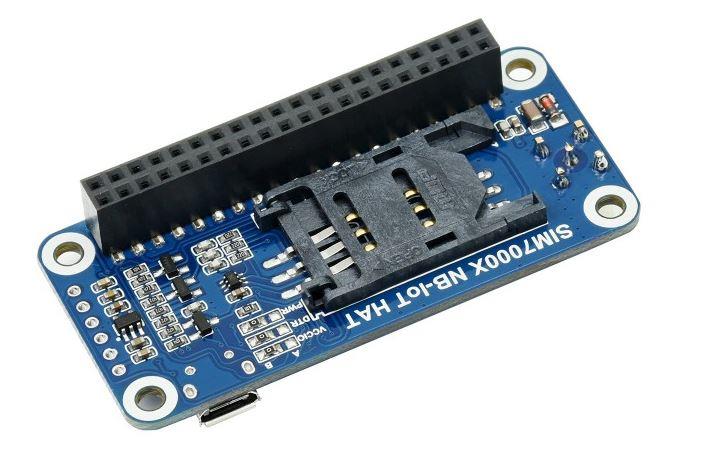

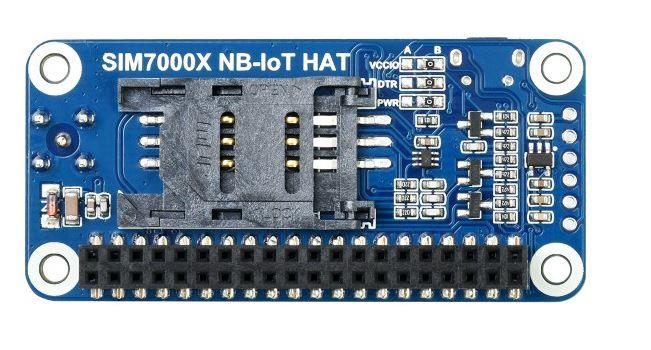

    1. Network status indicator
    2. Power indicator
    3. Operating voltage selection jumper
      configured via 0Ω resistor jumper
      A: set operating voltage as 5V
      B: set operating voltage as 3.3V (default)
    4. DTR configuration jumper
      configured via 0Ω resistor jumper
      A: DTR is controlled by the Raspberry Pi P26 pin
      B: NC (default)
    5. PWR configuration jumper
      configured via 0Ω resistor jumper
      A: startup/shutdown by the Raspberry Pi P4 pin
      B: auto startup on power-up (default)
