RFDK_PIC16_LCD

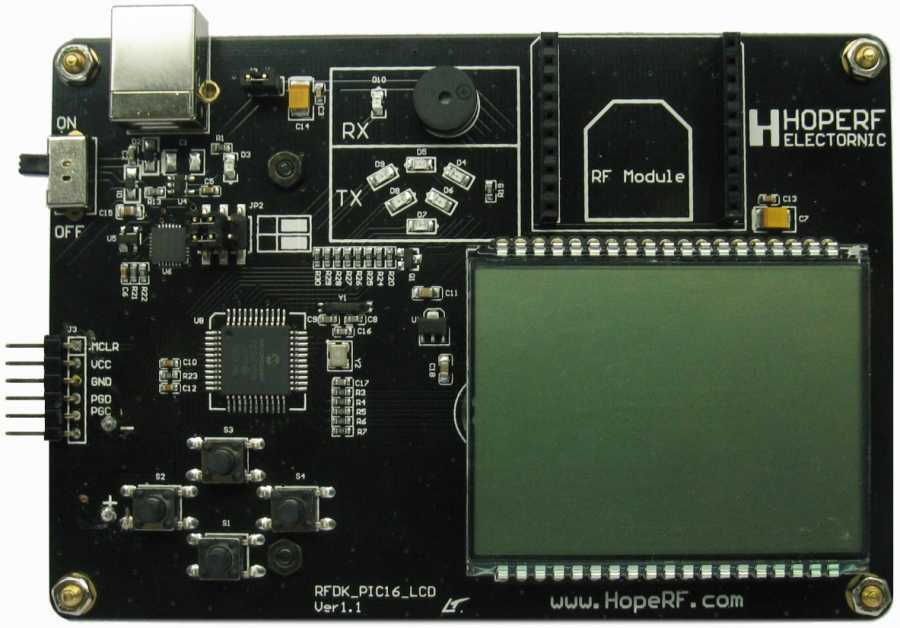

RFDK_PIC16_LCD_Ver1.1 It’s the newest version DK from Hoperf which is for COB RF module development and test. It’s an easy way to make customer know the performance of the RF module by simple demonstration. Customer can find the file RFDK_PIC16_LCD_Ver1.1 and download the demo codeaccordingly which is for any of the COB module from the website www.hoperf.com .it’s very simple to use the DK, Customer can change the parameters easily ,it’s easy to do TX and RX test. It can help customer to short the time from prototype to final production. Figure 1 RFDK_PIC16_LCD_Ver1.1

Development conditions

Power supply：

battery：4 x 1.5V（AA）;

USB: 5V ;

Optional Interface Boards ;

• 40801000469 - adapter board RFM69CW
• 40801000502 - adapter board RFM69HCW
• 40801000487 - adapter board RFM95W
• 40801000490 - adapter board RFM98W
