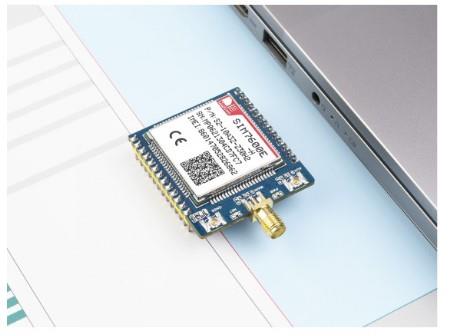

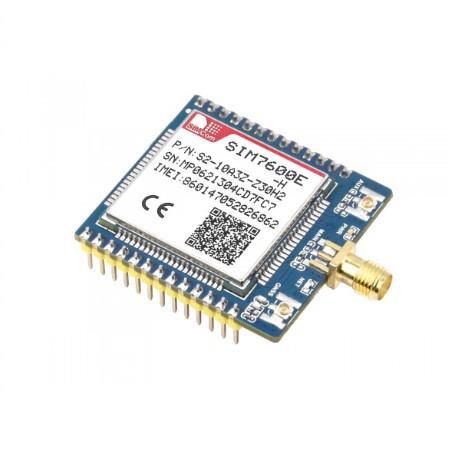

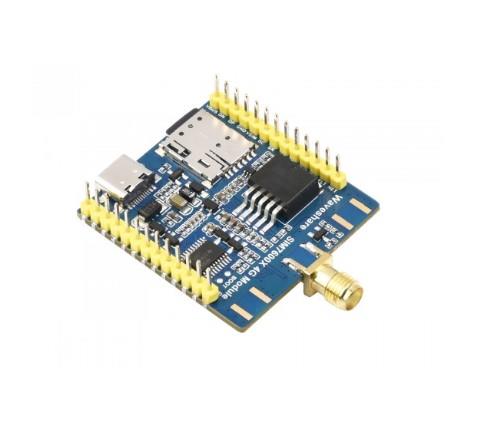

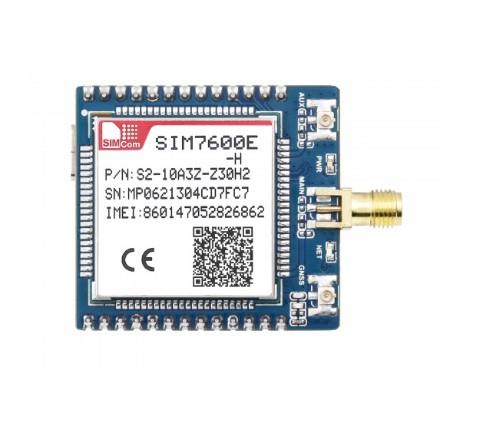

Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.SIM7600X 4G Communication Module, Multi-Band Support, Compatible With 4G/3G/2G, With GNSS Positioning, 4G Module OptionalSIM7600X 4G Module
Supports 4G/3G/2G Communication And GNSS Positioning
Features At A Glance- Compatible with 2G/3G/4G network
- Supports dial-up, telephone call, SMS, TCP, UDP, MQTT, DTMF, HTTP, FTP, etc.
- Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning
- Onboard USB and UART interface, for dial-up Internet access, cloud platform communication, GNSS positioning, etc.
- Castellated holes with immersion gold design, small size, easy to integrate into the device by soldering directly or inserting via the pin header
- Adapting USB/UART/SIM card/GPIO control pins, easy to develop and debug, better expansibility
- Built in voltage translator, compatible with 3.3V/5V MCU motherboards such as STM32/ESP32/Arduino
- Supports multiple power supply methods: USB port, VIN pin, and VBAT pin (for 3.7V lithium battery)
- Onboard multiple protection circuits: TVS protection for SIM card, power supply isolation between the USB port and pin header, VIN pin power supply anti-reverse, and so on, more safe and reliable
- 2x LED indicators, easy to monitor the operating status
- Adopts SIMCOM recommended power supply solution, supports 5~26V wide voltage power supply and 3A high current output, to prevent the module from dropping and restarting due to the large instantaneous power consumption, more stable and reliable in industrial use.
- Onboard Nano SIM card slot, supports 1.8V and 3V SIM cards, near the edge of the board design, for easy accessing SIM card
- Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

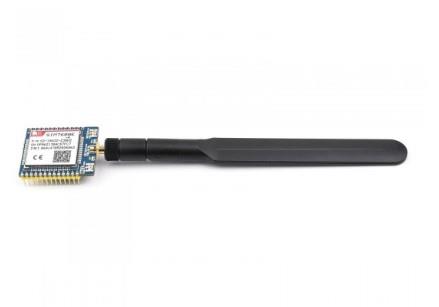

- Adapting 3-ch antenna connector, IPEX antenna connector version and SMA connector version optional, supports mass customization
SpecificationsSIM7600G-H 4G MODULE SIM7600E-H 4G MODULE
Applicable regions Global Europe/Southeast Asia/West Asia/Africa/China/Korea FREQUENCY BAND LTE Cat-4 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18
/B19/B20/B25/B26/B28/B66
LTE-TDD: B34/B38/B39/B40/B41LTE-TDD: B38/B40/B41
LTE-FDD: B1/B3/B5/B7/B8/B203G UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19 UMTS/HSPA+: B2/B5 2G GSM/GPRS/EDGE: 850/900/1800/1900 MHz GSM/GPRS/EDGE: 900/1800MHz GNSS Frequency band GPS/Beidou/GLONASS/GALILEO/QZSS Receiver type C/A Code 16-channel Sensitivity -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou) Cold starts: -148 dBm Time-To-First-Fix (open air) Cold starts: <35s Hot starts: <1s SOFTWARE FEATURES Network protocol TCP/IP/IPV4/IPV6/MQTT/MQTTS/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS Internet access PPP/NDIS/RNDIS USB driver Windows XP/7/8/10/11, Linux (driver free on Raspberry Pi Raspbian system) SMS Supported types: MT, MO, CB, Text, PDU HARDWARE INTERFACE USB interface Can be used to access PC/Raspberry Pi/Jetson Nano and other hosts for 4G networking, positioning, AT command sending and receiving test, firmware upgrade, etc. UART interface Can be used to access MCU for 4G networking, positioning, AT command sending and receiving test, etc., compatible with 3.3V/5V working level SIM card slot Onboard Nano SIM card slot, adapting related pins, compatible with 1.8V and 3V SIM card Antenna connectors MAIN: 4G main antenna (optional SMA connector or IPEX 1 connector version)
AUX: 4G auxiliary antenna (IPEX 1 connector by default, can be mass-customized as SMA connector)
GNSS: Positioning antenna (IPEX 1 connector by default, can be mass-customized as SMA connector)Other interface Adapting other common control pins such as GPIO, PWR, RST, FLT OTHER Power supply USB port or VBUS - GND pin: 5V power supply VIN - GND pin: 5V~26V wide-range voltage power supply BAT - GND pin: 3.7V lithium battery power supply Operating voltage 3.3V by default (configurable as 3.8V-5V via VIO pin by connecting external voltage) Operating temperature -30°C ~ 80°C Storage temperature -45°C ~ 90°C Dimensions 38.8 x 42.0mm
Compatible With Multiple PlatformsProvides Raspberry Pi/Raspberry Pi Pico/Jetson Nano/ESP32/Arduino/STM32 Demos
And User Manuals, Easier To Develop And Integrate, And Better Expansibility
Cloud CommunicationSupports Communication Protocols Including
TCP, UDP, MQTT, MQTTS, FTP, FTPS, HTTP, HTTPS...
* SIM7600X module supports telephone call function, since without adapting PCM and audio jack onboard, the AT commands and USB AUDIO development are required to realize telephone call via USB portPinout Definition

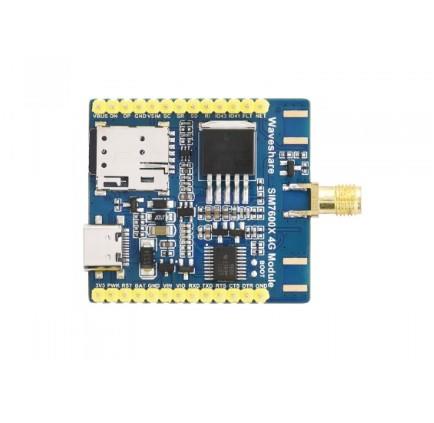

PIN DESCRIPTION PIN DESCRIPTION NET Network Indicator GND Power Ground FLT Flight mode DTR Sleep mode wake up IO41 Controll GPIO41 high or low level output by AT command CTS UART flow control IO43 Controll GPIO43 high or low level output by AT command RTS UART flow control RI Voice call wake up TXD UART Sending SD SIM card data RXD UART Receiving SR SIM card reset VIO VCCIO, default 3.3V when is not connected, configurable as 3.8V-5V via VIO pin by connecting external voltage SC SIM card clock VIN wide voltage input, 5V~26V VSIM SIM card power supply GND Power Ground GND Power ground BAT 3.7V Lithium battery power input DP USB signal cable Data+ RTS Module reset pin DN USB signal cable Data- PWK module power on/off pin VBUS USB power supply cable 3V3 power supply output

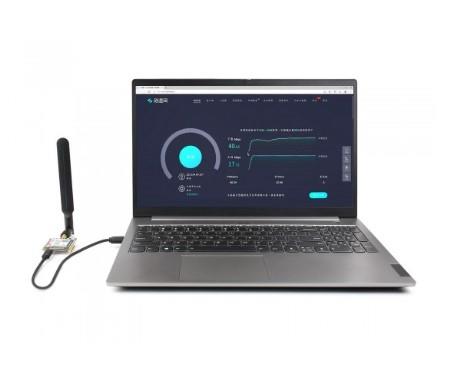

Hardware Connection ReferenceConnected To PC / Raspberry Pi / Jetson Nano Boards Via USB
