10.349,76 TL + KDV
Stok Durumu:
Var
(4 Adet)
Not
:
Aynı Gün Kargo
15’e kadar aynı gün kargo
Worldwide
Shipment
Next Day
Shipment
Kampanya
{{CMP.TITLE}}
{{CMP.DESCRIPTION}}
- Ürün Özellikleri
- İade ve Teslimat
- Ödeme Seçenekleri
- Yorumlar (0)
- Beni Ara
- Ek
-

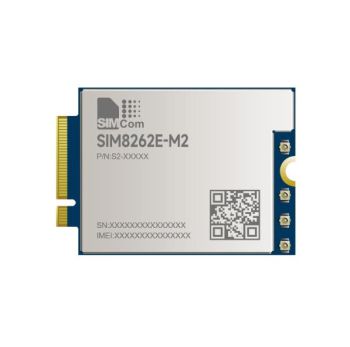

Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.SIM8262E-M2 SIMCom Original 5G Module, M.2 Form Factor, Qualcomm Snapdragon X62Product Advantages
- Standard M.2 interface.
- High throughput data communication.
- AT commands of the SIM8262E-M2 are compatible with SIM7912G/SIM8200X-M2 series modules
SpecificationsSIM8200EA-M2 SIM8202G-M2 SIM8262E-M2 SIM8262A-M2 5G STANDARD 3GPP R15 3GPP R16 CHIP Qualcomm Snapdragon X55 Qualcomm Snapdragon X62 FREQUENCY BAND Sub-6G n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n78 n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n66, n71, n77, n78, n79 n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78,n79 n2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79 LTE-FDD B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32 B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71 LTE-TDD B34, B38, B39, B40, B41, B42, B43, B48 B38, B39, B40, B41, B42, B43 B41, B46, B48 WCDMA B1, B2, B3, B4, B5, B8 B1, B5, B8 B2, B4, B5 GNSS GPS, GLONASS, Beidou, Galileo, and QZSS DATA RATE Sub-6G 2.4 Gbps (DL) / 500 Mbps (UL) LTE 1 Gbps (DL) / 200 Mbps (UL) HSPA+ 42 Mbps (DL) / 5.76 Mbps (UL) SOFTWARE FUNCTIONS Operating systems Windows/Linux/Android Communication protocols TCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0 Dial Up RNDIS、NDIS、PPP、MBIM SMS Supports MT, MO, CB, Text, PDU Firmware upgrade Supports firmware upgrade via USB port HARDWARE SPECIFICATIONS SIM Card 1.8V/2.95V Antenna For 3G/4G/5G/GNSS 6 × IPEX-4 connectors 4 × IPEX-4 connectors Power Supply 3.135~4.4V Form Factor M.2 Dimensions 52.0 × 30.0 × 2.3 mm 42.0 × 30.0 × 2.3 mm Operating Temperature -30℃ ~ +70℃ APPLICATIONS Applicable regions China, US, Japan, South Korea, Europe, the Middle East, Latin America except Americas Americas The applicable regions above are for reference only, please choose the right module according to your local operator network coverage and supported frequency bands Application examples CPE, Smart gateway, Drone, Live streaming, Remote medical treatment, Intelligent security
