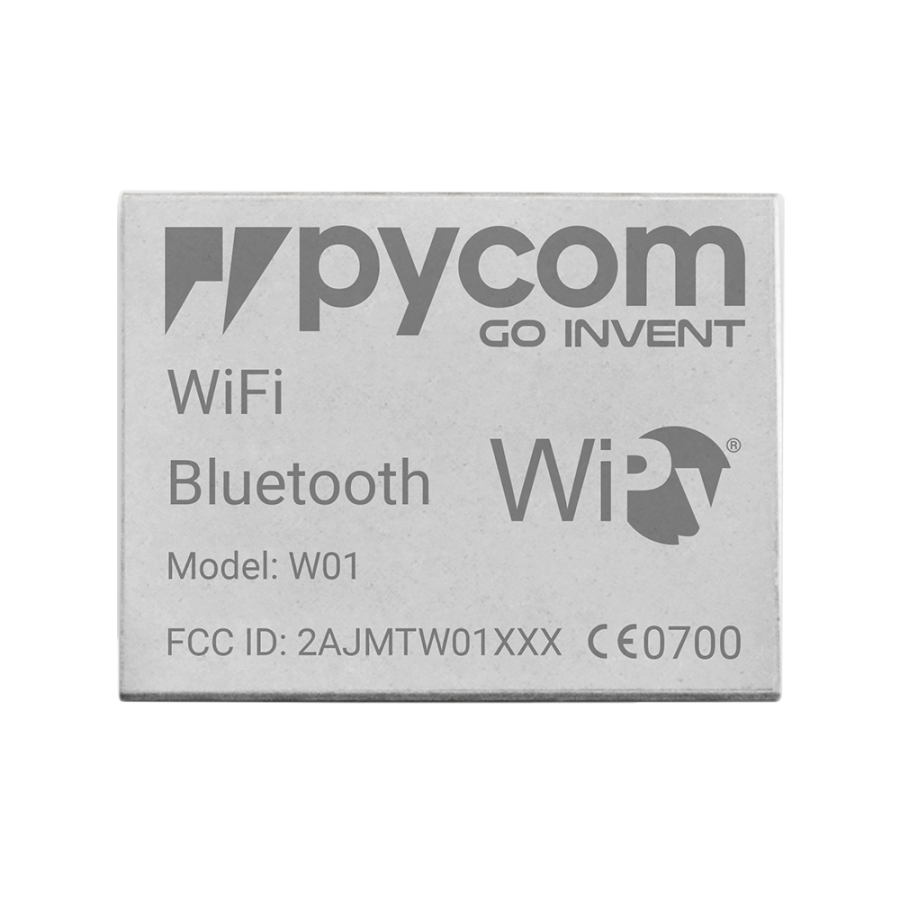

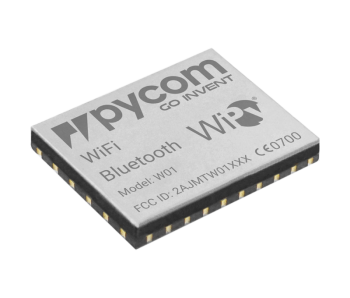

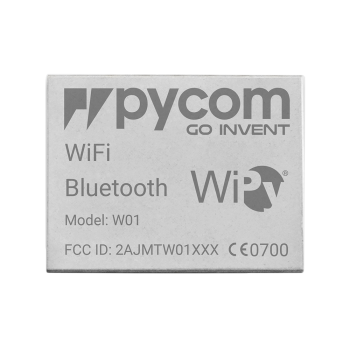

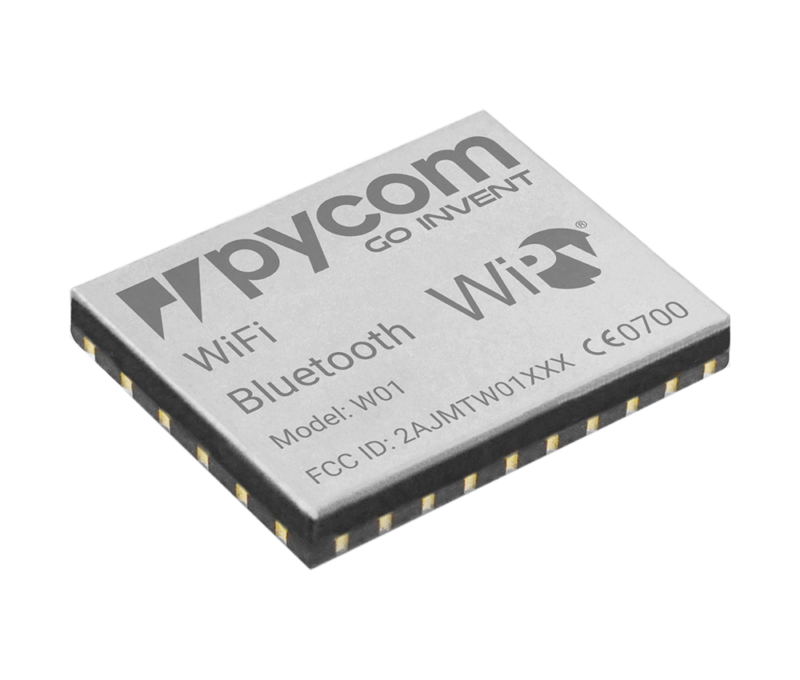

W01 OEM

Wifi & Bluetooth IoT development platform. With a 1KM
WiFi range, state of the art Espressif ESP32 chipset and dual
processor, the W01 is all about taking the Internet of Things to
the next level. Create and connect your things everywhere. Fast.

W01 Features

• Powerful CPU, BLE and state of the art WiFi radio.
• 1KM Wifi Range
• MicroPython enabled
• Fits in a standard breadboard (with headers)
• Ultra-low power usage: a fraction compared to other connected micro controllers

Processing

• Espressif ESP32 chipset
• Dual processor + WiFi radio System on Chip
• Network processor handles the WiFi connectivity and the IPv6 stack
• Main processor is entirely free to run the user application
• An extra ULP-coprocessor that can monitor GPIOs, the ADC channels and
  control most of the internal peripherals during deep-sleep mode while only
  consuming 25uA

Interaces

• 2 x UART, 2 x SPI, I2C, I2S, micro SD card
• Analog channels: 8x12 bit ADCs
• Timers: 4x16 bit with PWM and input capture
• DMA on all peripherals
• GPIO: Up to 24

Hash / encryption

• SHA, MD5, DES, AES

WiFi

• 802.11b/g/n 16mbps

Bluetooth

• Low energy and classic

RTC

• Running at 32KHz

Power

• - Voltage Input: 3.3V regulated

Security & Certifications

• SSL/TLS support
• WPA Enterprise security
• FCC - 2AJMTW01XXX
• CE 0700

Memory

• RAM: 4MB
• Flash Memory: 8MB
• Hardware floating point acceleration
• Python multi-threading
