WIZnet

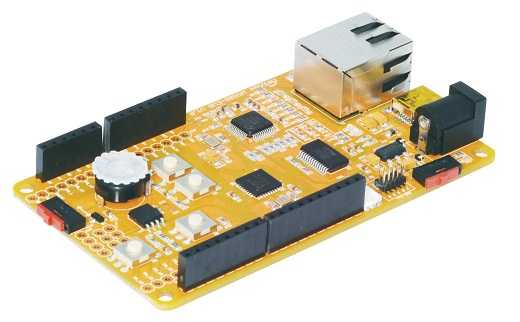

W5500-EVB

Ürün Kodu : W5500-EVB
Yorumlar
1.483,47 TL + KDV
Stok Durumu:
Yok
Teklif İsteyiniz Stoklara düşünce haber ver
Not
:
Aynı Gün Kargo 15’e kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek
  • Key Features
    • 32bit ARM Cortex-M0 based evaluation board for W5500 chip
    • Hardware pin-compatible with Arduino Uno Rev.3 shield
    • On-board temperature sensor / potentiometer (provide reference code)
    • 2 Push button switch (SW), 1 x RGB LED, 4-Mbit external data flash memory
    • Ethernet / USB-mini B connector and 10-pin Cortex debug connector for SWD (Serial Wire Debug)
    • Provides various application code – Loopback, DHCP, DNS, Controlling on-board sensor & potentiometer
    Hardware Specification
    • MCU : NXP Cortex-M0 (Running at up to 50MHz, 96KB Flash, 2KB SRAM, 4KB EEPROM)
    • Ethernet : W5500(WIZnet Hardwired TCP/IP)
    • IO : 16 GPIOs, 6 Pins Analog Peripheral using 10bit ADC
    • RJ-45 :  10/100 Base-TX RJ-45 with Transformer (J1B1211CCD / CETUS)
    • USB : USB Mini-B (On-board USB-to-UART IC, USB BUS Power / FT232RL)
    • Power : 5V DC Power

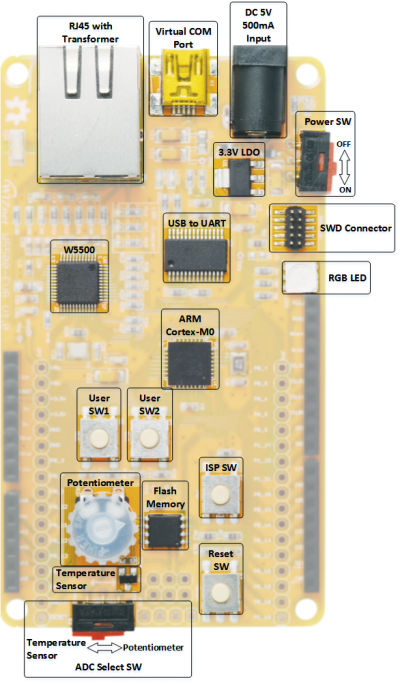

    • On-board User I/F : 2xPush button switch, 1xRGB LED, Temperature Sensor, Potentiometer
    • External Memory : 4-Mbit Serial Data Flash Memory (AT45DB041D-SU)
    • Dimension (mm) : 93 (L) x 53 (W) x 17.3(H)
