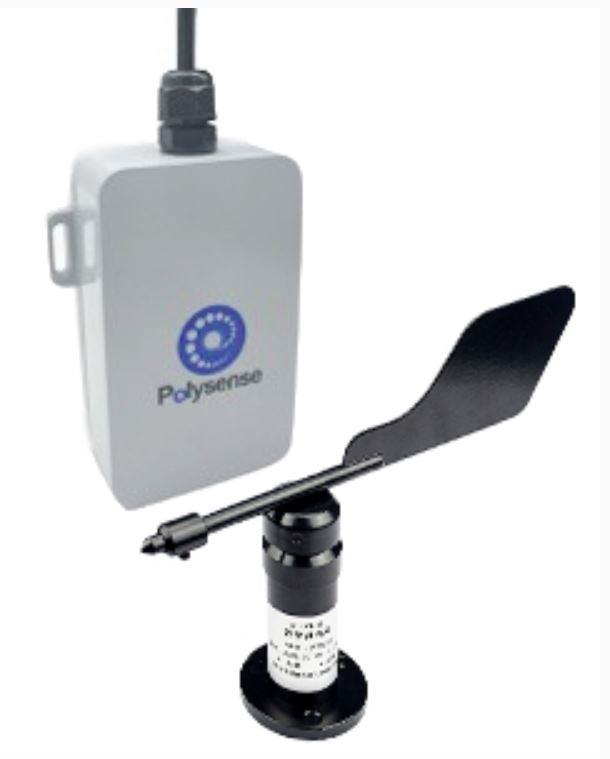

Wind Sensor

Product Highlights

ü  Wind Sensor

ü  Measuring range:0 ~ 360 °, Accuracy :±1 °

ü  Eight directions

ü  Dynamic response speed 0.5s

ü  Work environment - 20 ℃ ~ 60 ℃, 0% RH to 80% RH

ü  Low power consumption, equipment power supply 3.3v

ü  RS485 (Modbus) communication protocol

ü  Small size, easy to carry, simple installation, beautiful appearance

ü  Strong corrosion resistance and weather resistance

ü  Low power consumption, strong anti-interference ability, long-term stable work

ü  Wide range of power supply, good linearity of data information, long signal transmission distance

ü  Cross-threshold reporting, periodic reporting every 2 hours (both threshold and periodic reporting cycles can be configured by the user)

ü  OTA (Over The Air) firmware updates, including upgrade loader and application images

ü  Analog and digital interfaces for external sensor connections and pulse counting (MPI)

ü  Low power consumption, 2 x AA li-soci2 battery, battery life is 5-10 years, optional DC 5V power supply

ü  Integrated built-in antenna or optional external SMA/IPEX antenna

ü  Transmission reaches 5km in NLoS (non-line-of-sight);The transmission range in the LoS environment is up to 18 kilometers

ü  IP67 protection level

Specifications

Wireless
ISM Band	EU 863 – 870MHz；US 902 – 928MHz China 779 – 787MHz；EU 433MHz AS 923MHz；CN 470 – 510MHz
Maximum Link Budget	168dB
Distance	Up to 5km NLOS; up to 18km LOS
Antenna	Integrated internal antenna or external 1/2 wavelength whip antenna (SMA)

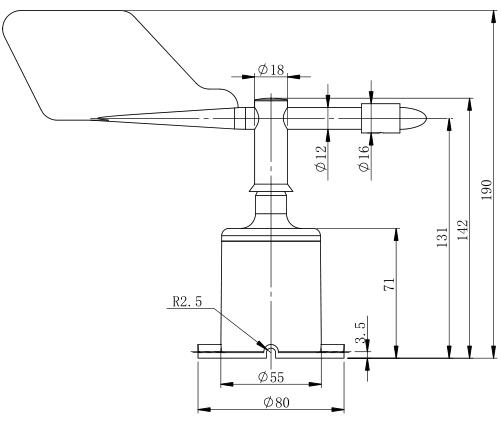

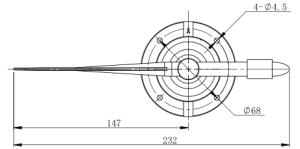

Mechanical
Dimension	60mm x 100mm x 30mm (WxS8800)
IP rating	IP67 (WxS8800)
Operating Temperature	-40℃ to +85℃ (WxS8800)；
Cable length	0.5 meters
Total Weight	120 g
Electrical
Supply Voltage	3.0 – 3.8 VDC
Power Type	Replaceable 1 or 2 AA 3.6V Li-SOCI2 Battery; DC 4.5V – 12V optional
Compliance/Certification
	LoRaWAN 1.0.2
	FCC(America): 2AO7W-WXS8000, IC(Canada): 23701-WXS8000 CE(European Union)：B1810246 ROHS(European Union): R2BJ180927F0664E
