  • ​Product Description

    BlueMod+SR is a Bluetooth solution for cable replacement
    applications and smartphone connectivity.
    Regardless of whether the application requires high
    throughput or low energy consumption, BlueMod+SR
    offers the best of both worlds. The module offers NFC
    handover as an additional feature. NFC handover enables
    easy Bluetooth pairing for Bluetooth classic and
    Bluetooth low energy. Searching for Bluetooth devices
    over the air is no longer required.

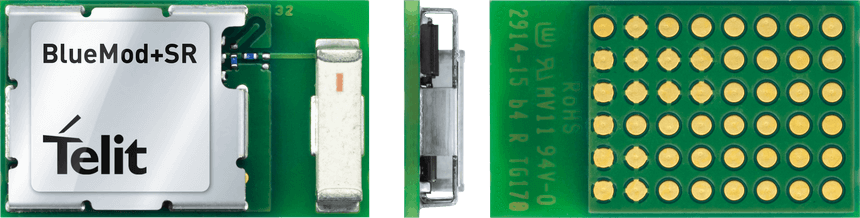

     The module has a very small form factor dual mode
    Bluetooth 4.0 module (17x10x2.6 mm). Range in line of
    sight is about 100m.
    Dual mode means it supports classic Bluetooth basic
    rate (BR) and enhanced data rate (EDR) operations as
    well as Bluetooth low energy (LE). Integration is easy
    and cost-effective thus reducing time to market and
    overall development cost of new products.

     Key Benefits

    • Bluetooth v4.0 dual mode compliant

    • Master and slave mode support

    • Simultanous BR/EDR and BLE connectivity

    • Integrated antenna or external antenna

    • NFC Support: Read and write of data to a dynamic NFC tag

    • Pin to pin compatible with

     Interfaces

    • UART: 9600 bps – 921600 bps (asynchronous)

    • Other interfaces: I²C, SPI

    • GPIOs: 11

     NFC Handover

    BlueMod+SR is able to read and write its Bluetooth
    address to a dynamic NFC tag which can be used for
    Bluetooth pairing. The NFC tag is connected to the
    BlueMod+SR via the I²C interface. The field detection
    function on the tag can be used to wake up the
    BlueMod+SR from standby and to initiate the Bluetooth
    communication.
    Telit provides an NFC Utility App for Android devices
    for evaluating the NFC handover feature. The app can
    declare two intent filters for the NDEF data on the NFC
    tag, One for BR/EDR and one for Bluetooth low energy
    handover.
  • Telit_BlueMod_SR_Datasheet
