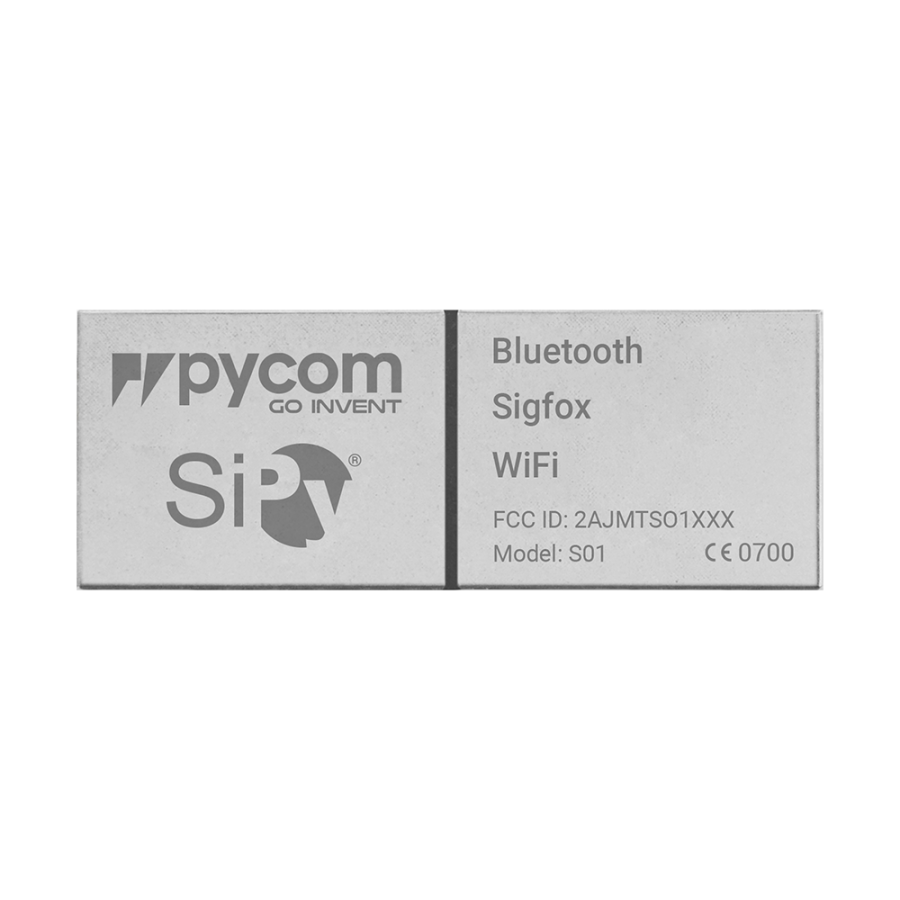

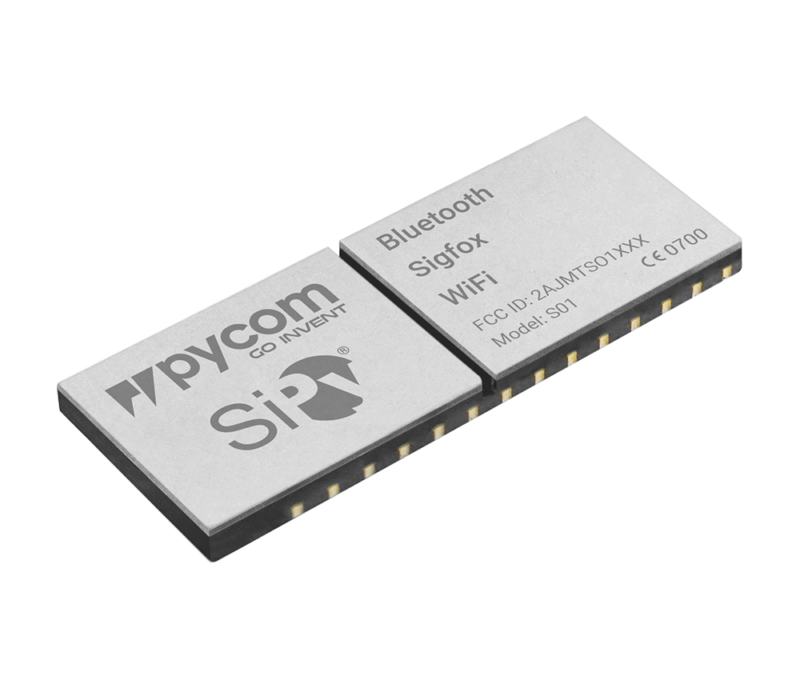

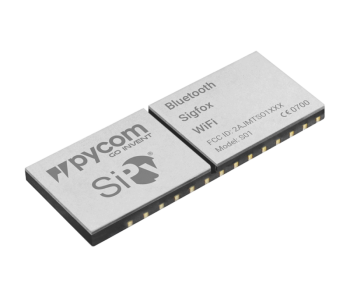

S01 OEM 14 dBm

Pycom triple- bearer MicroPython enabled micro controller on
the market today – the perfect enterprise grade IoT platform
for your connected Things. With the latest Espressif chipset the
S01 offers a complete combination of power, friendliness and
flexibility. Create and connect your things everywhere. Fast.

S01 Features

• Powerful CPU, BLE and state of the art WiFi radio
• 1KM Wifi Range
• MicroPython enabled
• Fits in a standard breadboard (with headers)
• Ultra-low power usage: a fraction compared to other connected
• micro controllers

Processing

• Espressif ESP32 chipset
• Dual processor + WiFi radio System on Chip.
• Network processor handles the WiFi connectivity and the IPv6 stack
• Main processor is entirely free to run the user application
• An extra ULP-coprocessor that can monitor GPIOs, the ADC channels
• and control most of the internal peripherals during deep-sleep mode
• while only consuming 25uA

Interfaces

• 2 x UART, 2 x SPI, I2C, I2S, micro SD card
• Analog channels: 8x12 bit ADCs
• Timers: 4x16 bit with PWM and input capture
• DMA on all peripherals
• GPIO: Up to 24

Hash / encryption

• SHA, MD5, DES, AES

WiFi Networking

• 802.11b/g/n 16mbps

Bluetooth

• Low energy and classic

RTC

• Running at 32KHz

Range

• Node range: Up to 50km

Security & Certifications

• SSL/TLS support
• WPA Enterprise security
• AES encryption engine

Memory

• RAM: 4MB
• Flash Memory: 8MB
• GPIO: Upto 24
• Hardware floating point

acceleration

• Python multi-threading
